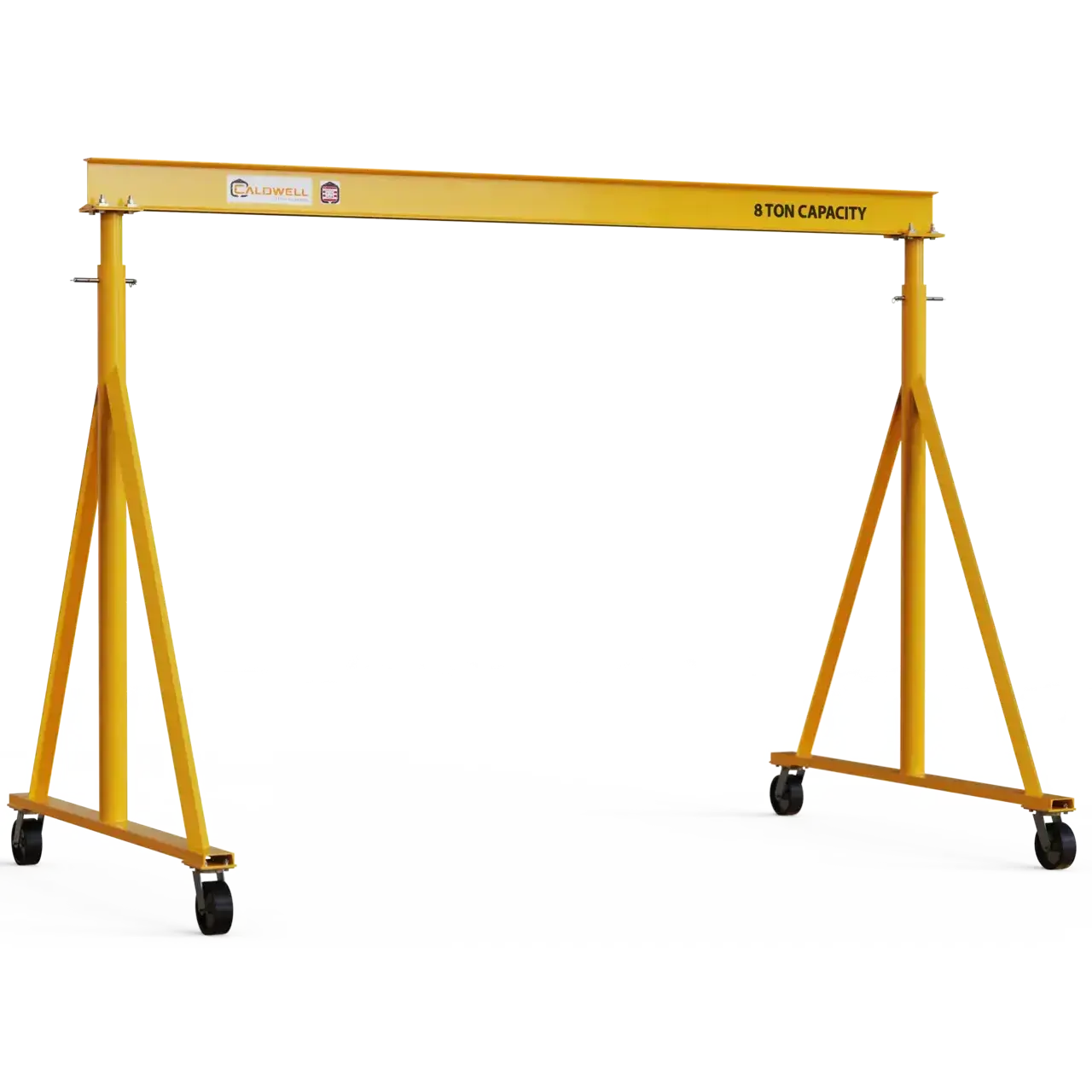

Product Features

  • Adjustable span standard on 10'-16' spans through 5 tons
  • Bolted connections on spans of 20'-24' and all 8 ton units
  • Heavy duty supported leg design
  • Balanced design allows for easy rolling, even under load
  • Conforms to AISC, OSHA, and CMAA specifications
  • Simple bolt together construction
  • Easy setup and maintenance
  • 4-wheel swivel casters standard
  • Height and span adjustability
  • Height adjustable down from maximum in 12" incremements

Product Options

  • Wheel Brakes
  • Swivel Locks
  • Floor Locks
  • Adjusting Level Kits
  • V-Groove Wheels - Angle Track - End Stops
  • Power Drive Kits
View Catalog View Owner's Manual

* To see all available model specifications please scroll through the table.

Model NumberCapacity (tons)Maximum Height Under Beam (ft)Bolt Connection Length (ft)Inside Span (A)Overall Length (B)Support Width ( C )Weight (lbs)Minimum Height (ft)Beam Height (in)Flange width (in)Caster Diameter (in)
K90-8-7/1087108' 6''11' 6''418615.518612
K90-8-7/12871210' 6''13' 6''419575.518612
K90-8-7/14871412' 6''15' 6''420535.518612
K90-8-7/16871614' 6''17' 6''422375.518612
K90-8-7/20872018' 6''21' 6''426775.516.43-W7.1212
K90-8-7/24872422' 6''25' 6''431295.518.35-W7.5912
K90-8-9/1089108' 6''11' 6''520746.518612
K90-8-9/12891210' 6''13' 6''521706.518612
K90-8-9/14891412' 6''15' 6''522666.518612
K90-8-9/16891614' 6''17' 6''524506.518612
K90-8-9/20892018' 6''21' 6''528906.516.43-W7.1212
K90-8-9/24892422' 6''25' 6''533426.518.35-W7.5912
K90-8-10/10810108' 6''11' 6''5.52182718612
K90-8-10/128101210' 6''13' 6''5.52278718612
K90-8-10/148101412' 6''15' 6''5.52374718612
K90-8-10/168101614' 6''17' 6''5.52558718612
K90-8-10/208102018' 6''21' 6''5.52998716.43-W7.1212
K90-8-10/248102422' 6''25' 6''5.53450718.35-W7.5912
K90-8-12/10812108' 6''11' 6''6.52396818612
K90-8-12/128121210' 6''13' 6''6.52492818612
K90-8-12/148121412' 6''15' 6''6.52588818612
K90-8-12/168121614' 6''17' 6''6.52772818612
K90-8-12/208122018' 6''21' 6''6.53212816.43-W7.1212
K90-8-12/248122422' 6''25' 6''6.53664818.35-W7.5912
K90-8-14/10814108' 6''11' 6''7.52608918612
K90-8-14/128141210' 6''13' 6''7.52704918612
K90-8-14/148141412' 6''15' 6''7.52800918612
K90-8-14/168141614' 6''17' 6''7.52984918612
K90-8-14/208142018' 6''21' 6''7.53424916.43-W7.1212
K90-8-14/248142422' 6''25' 6''7.53876918.35-W7.5912
K90-8-16/10816108' 6''11' 6''7.528231118612
K90-8-16/128161210' 6''13' 6''7.529191118612
K90-8-16/148161412' 6''15' 6''7.530151118612
K90-8-16/168161614' 6''17' 6''7.531991118612
K90-8-16/208162018' 6''21' 6''7.536401116.43-W7.1212
K90-8-16/248162422' 6''25' 6''7.540911118.35-W7.5912
