Model MHL

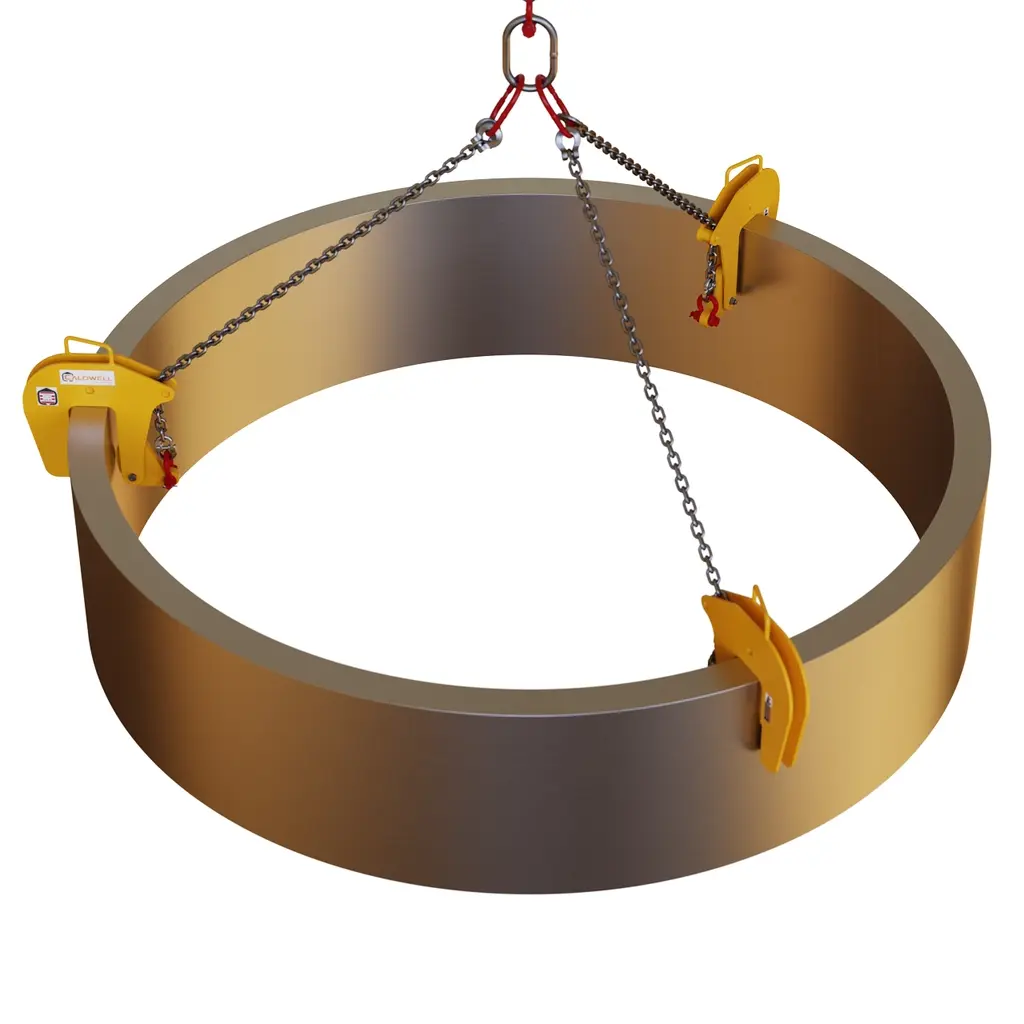

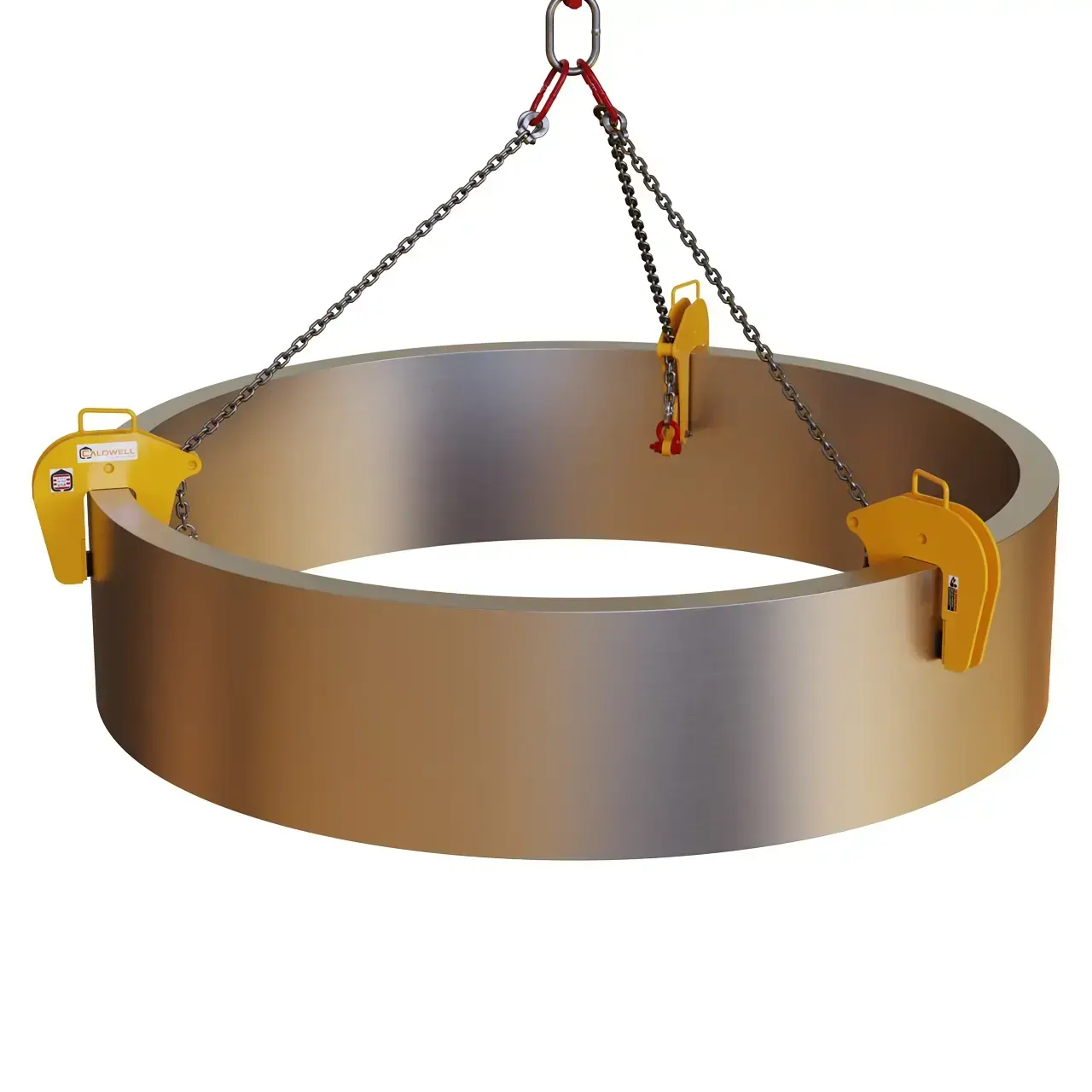

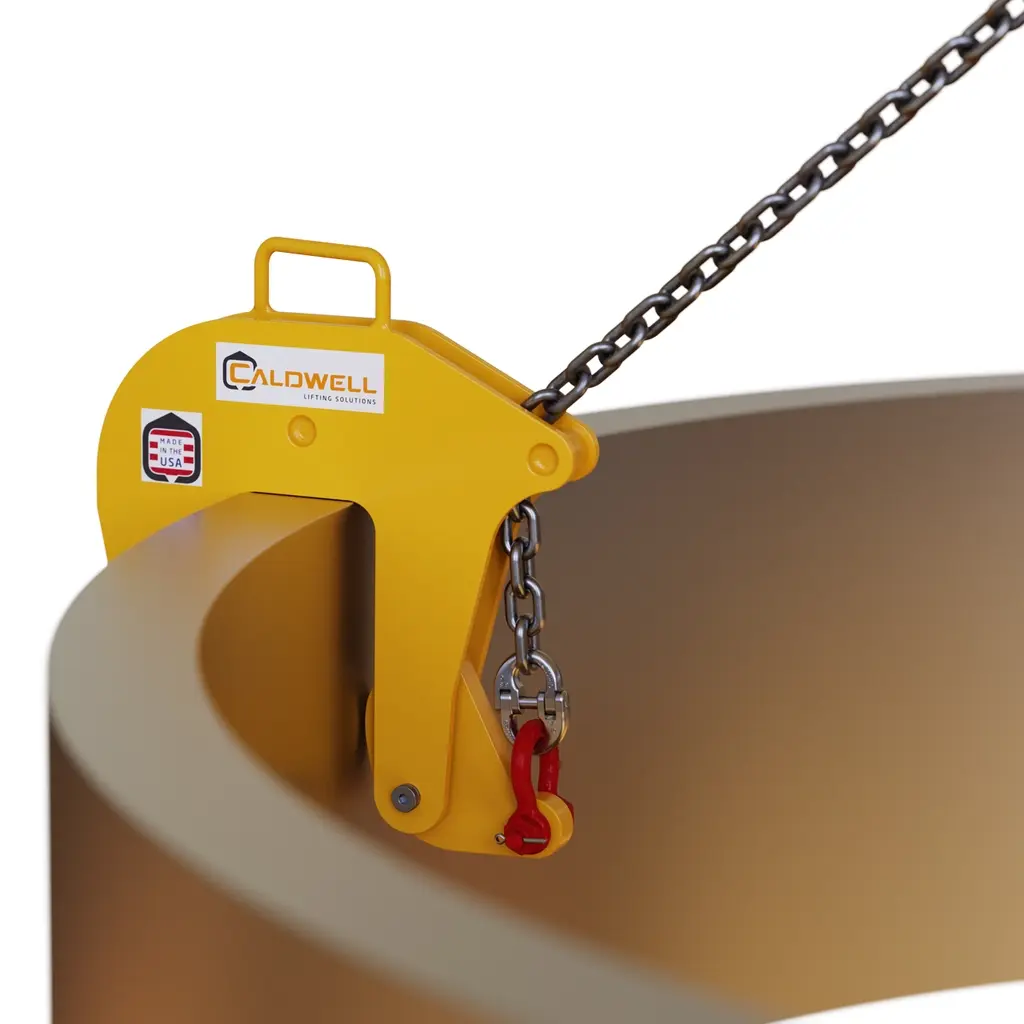

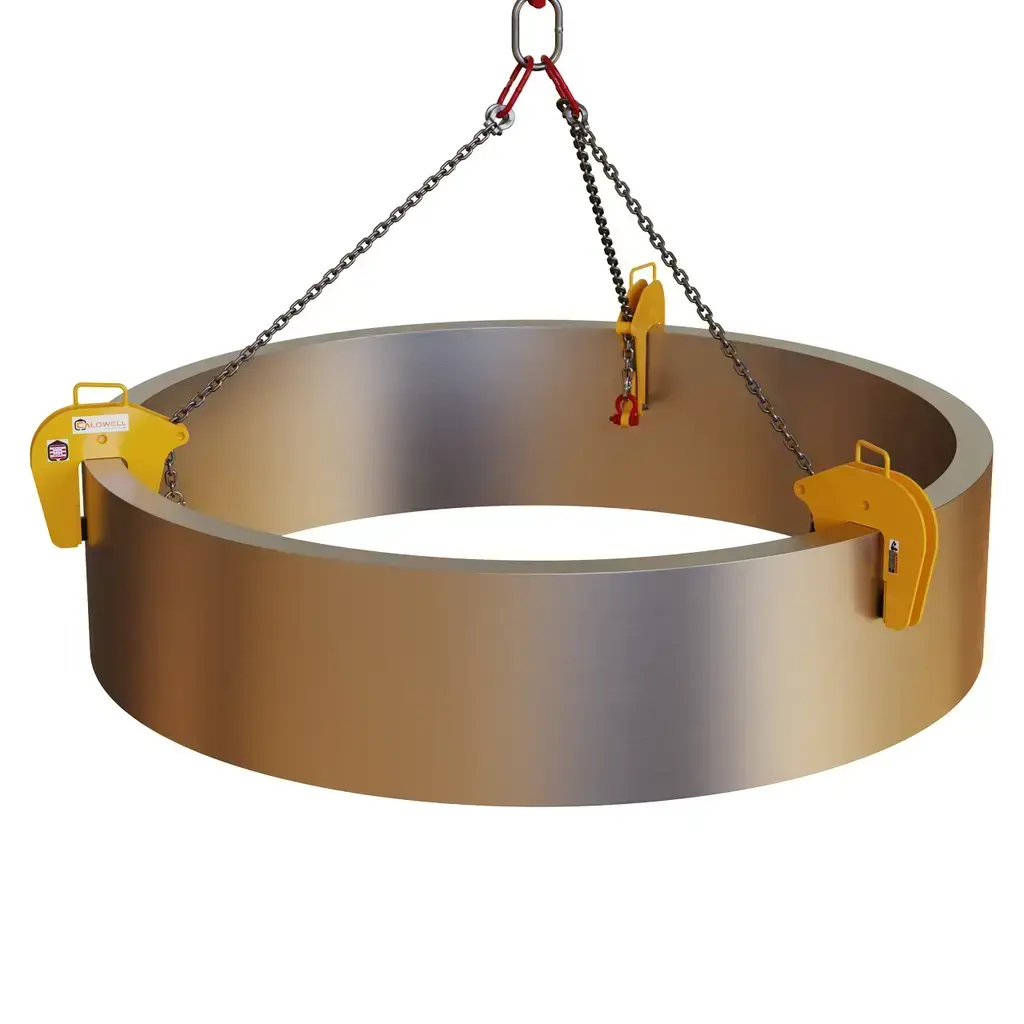

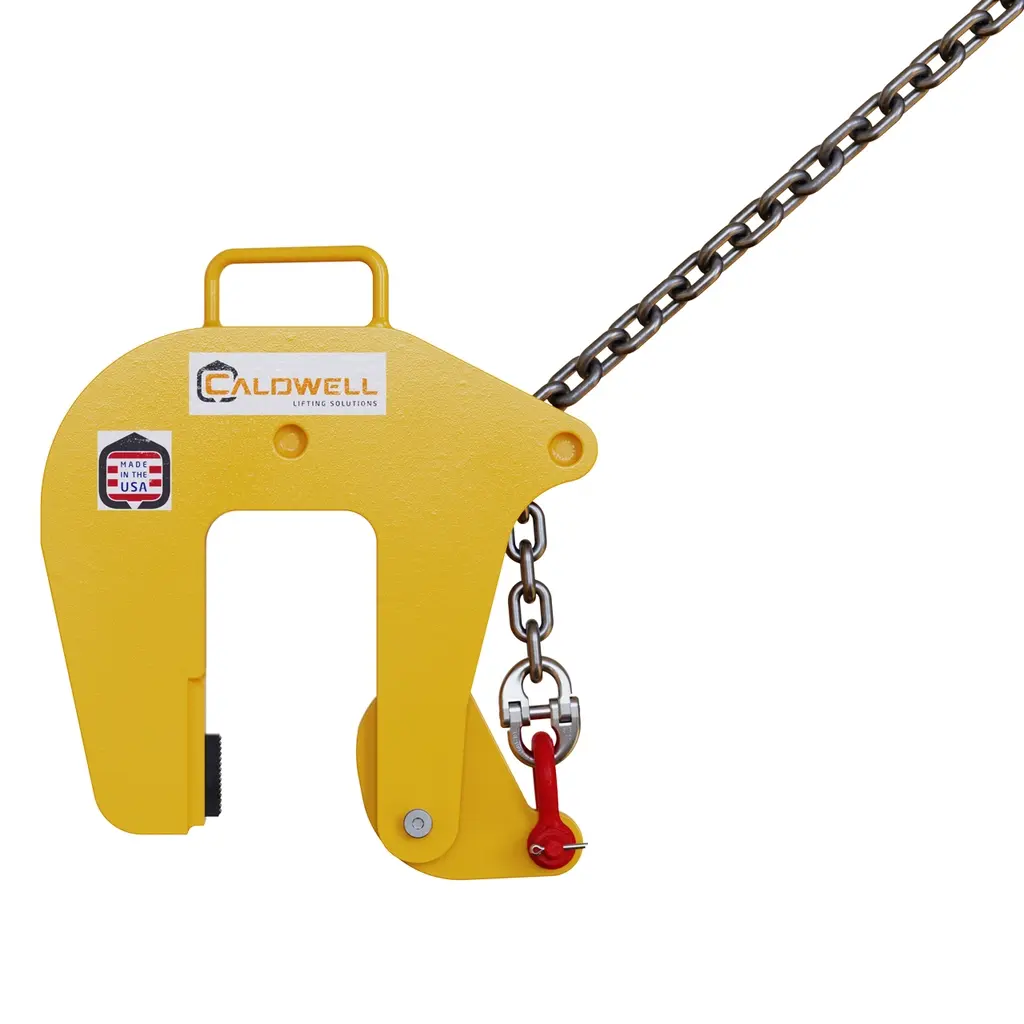

Concrete Manhole Housing Lifter

  • Model MHL
  • Model MHL
  • Model MHL
  • Model MHL
  • Model MHL
  • Model MHL

Product Features

  • Handle concrete pipe efficiently without damage to concrete seat
  • Legs can be quickly positioned to safely balance the load
  • 2 or 3 leg models available
  • Handles 4"-6" concrete wall thickness
  • Requires constant tension to maintain positive load contact
  • Complies with ASME standards
Request a Quote

Product Specifications

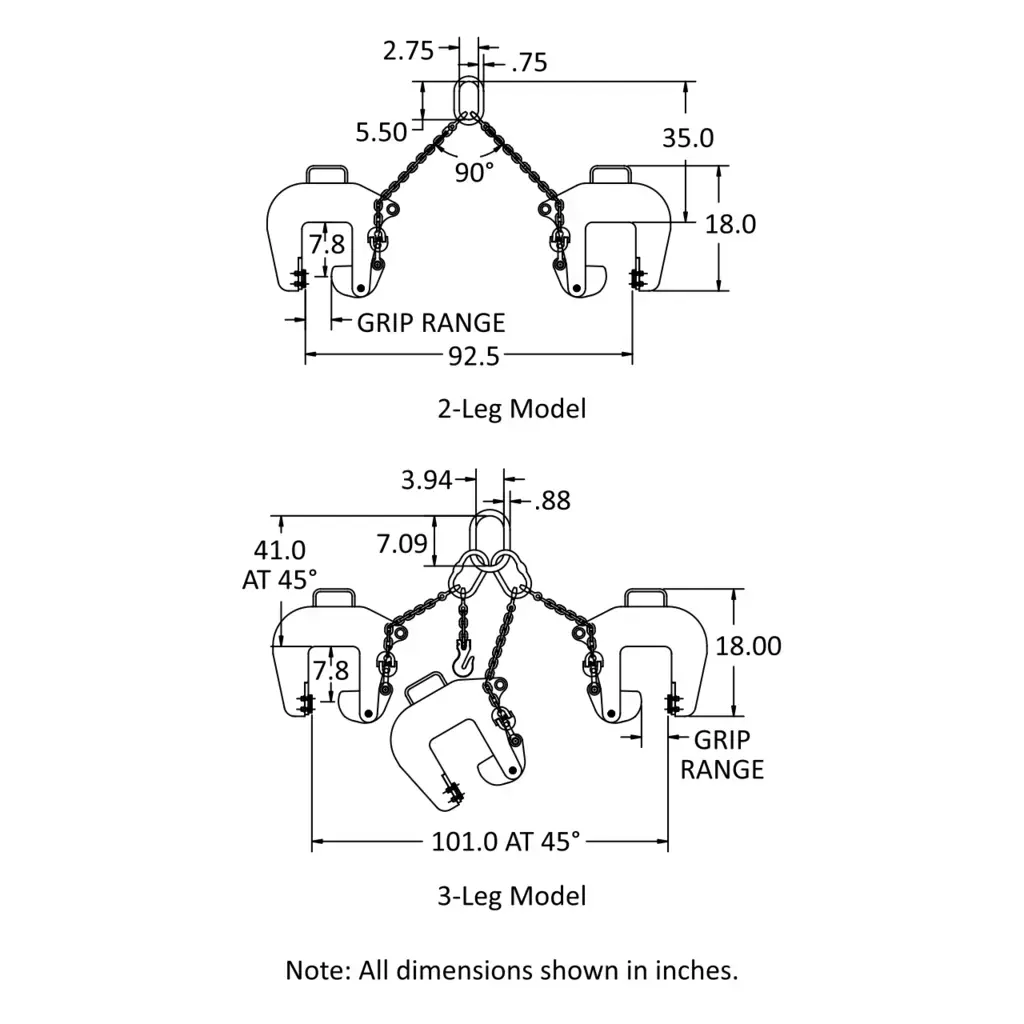

Model MHL specification image which goes over the dimesions of this model. These dimensions are displayed in the table below.

To see all available model specifications please scroll through the table.

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
Model NumberCapacity (lbs)Grip RangeDescriptionMaximum DiameterWeight (lbs*)
MHL-5.2/4100002'-4'2 Leg Model - Two 42" Legs92.5130
MHL-5.4/6100004'-6'2 Leg Model - Two 42" Legs92.5135
MHL-7.1/2.2/4150002'-4'3 Leg Model - Two 42" Legs - One with 72" Chain Shortener101180
MHL-7.1/2.4/6150004'-6'3 Leg Model - Two 42" Legs - One with 72" Chain Shortener101185
MHL-C-2/450002'-4'Clamp Only40
MHL-C-4/650004'-6'Clamp Only45
