Product Features

  • Forged steel
  • Large crane hook opening for easier rigging
  • Web-Trap design
  • Functions as both triangle and choker
  • Plated for corrosion resistance
  • Use with only one or two ply web slings
  • Use with roundslings up to 5,300 pound rated capacity
  • Complies with ASMe B30.9 sling

Product Specifications

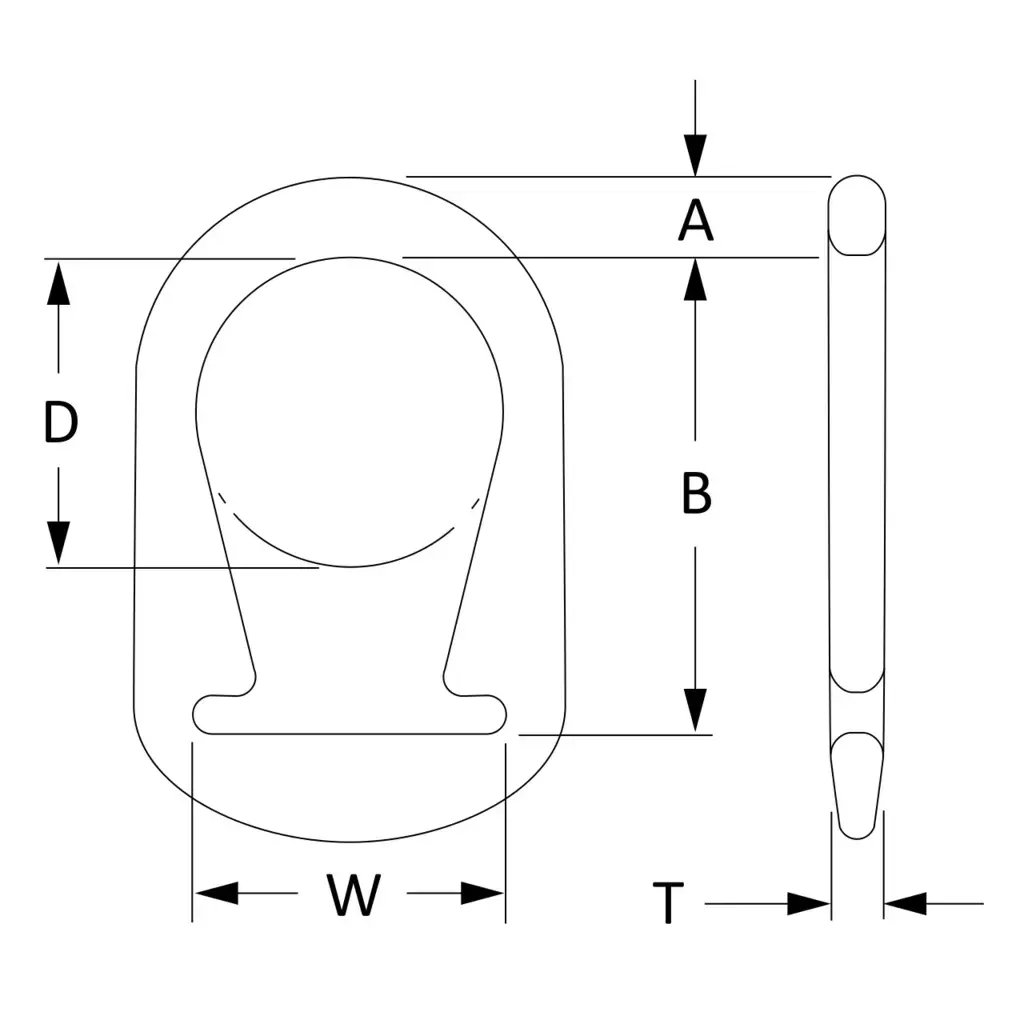

Model UL specification image which goes over the dimesions of this model. These dimensions are displayed in the table below.

* To see all available model specifications please scroll through the table.

Model NumberCapacity (tons)A (in)B (in)D (in)T (in)W (In)Weight (lbs*)
UL28000 11/163 11/162 9/1625
UL38600 7/8 5 1/163 5/8 35
UL411500 3/4 6 3/164 5/8 45
