Product Features

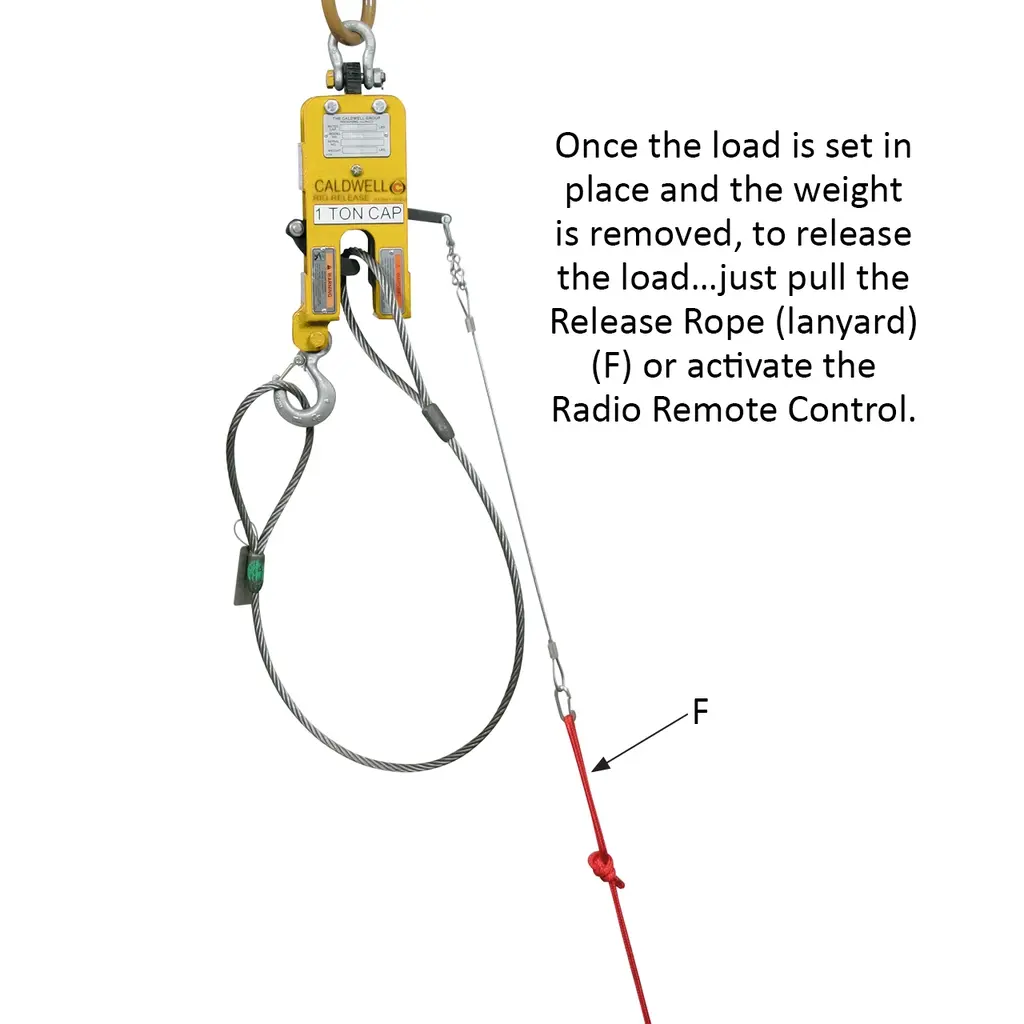

  • Allows rigging to be released from a safe distance with the push of a button
  • Designed for rugged outdoor use
  • Easy to use - simply rig, lift, set, and release
  • LOCK & CAPTURE feature engages with very little load weight
  • Includes two 12 VDC .8 Amp Hr. sealed maintenance free lead acid batteries (rechargeable)
  • Includes one charger, and one vehicle adapter for standard 12 VDC vehicle outlets
  • Battery life lasts through an 8 hour shift, depending on frequency of operation
  • Minimum required cycle time is 1-2 minutes between releases
  • Oversized bail for easy mounting on crane hook, 5 ton unit provided with fixed bail
  • Designed and manufactured to ASME standards
View Catalog

Product Specifications

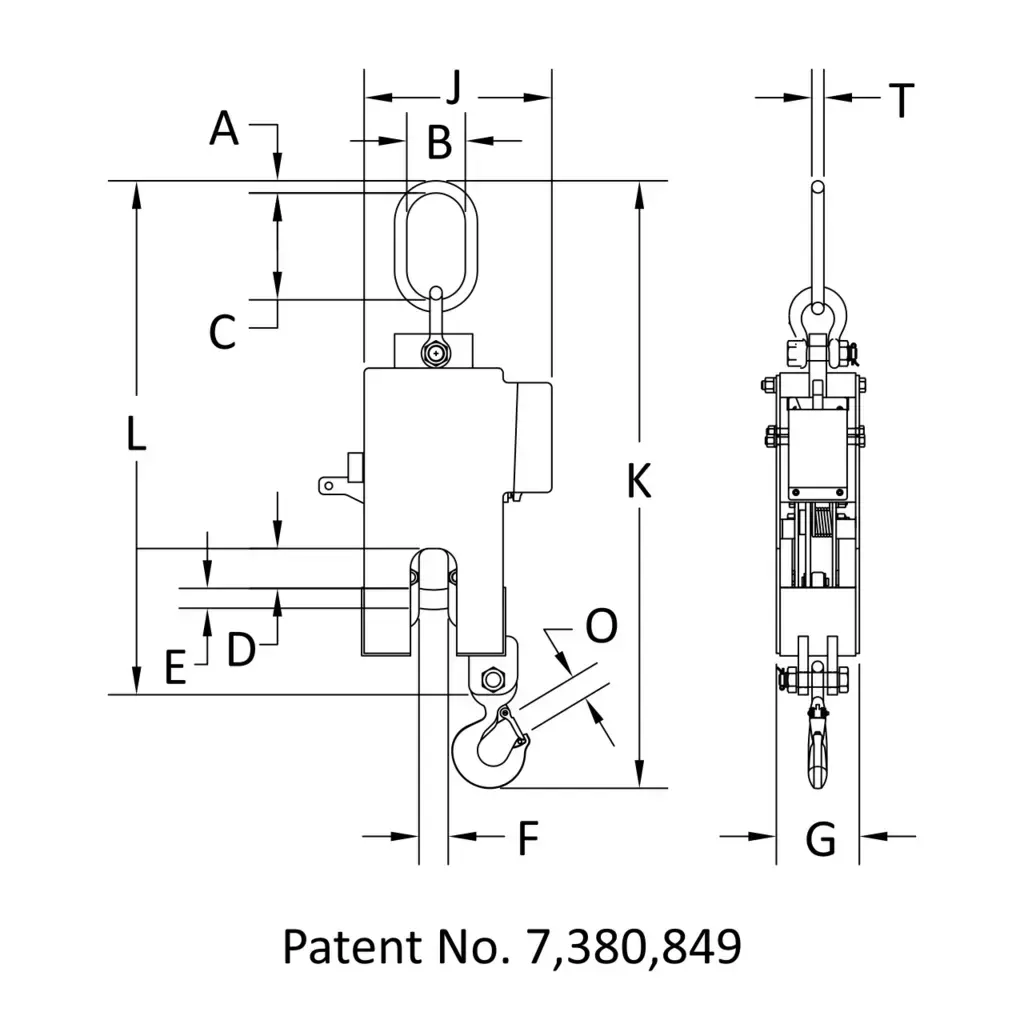

Model RR-R specification image which goes over the dimesions of this model. These dimensions are displayed in the table below.

* To see all available model specifications please scroll through the table.

Model NumberCapacity (tons)D (in)E (in)F (in)G (in)J (in)K (in)L (in)O (in)A (in)B (in)C (in)T (in)Weight (lbs)Minimum Load, Basket (lbs)Minimum Load, Choker (lbs)Suggested Rope SizeMax. Allowable Rigging Wgt, BasketMax. Allowable Rigging Wgt, Choker
RR-2.5R2.51.7511.54.259.5631.1526.881.090.63360.635080405/82814
RR-5R51.831.51.5511.1336.430.751.362471.251152501257/86030
