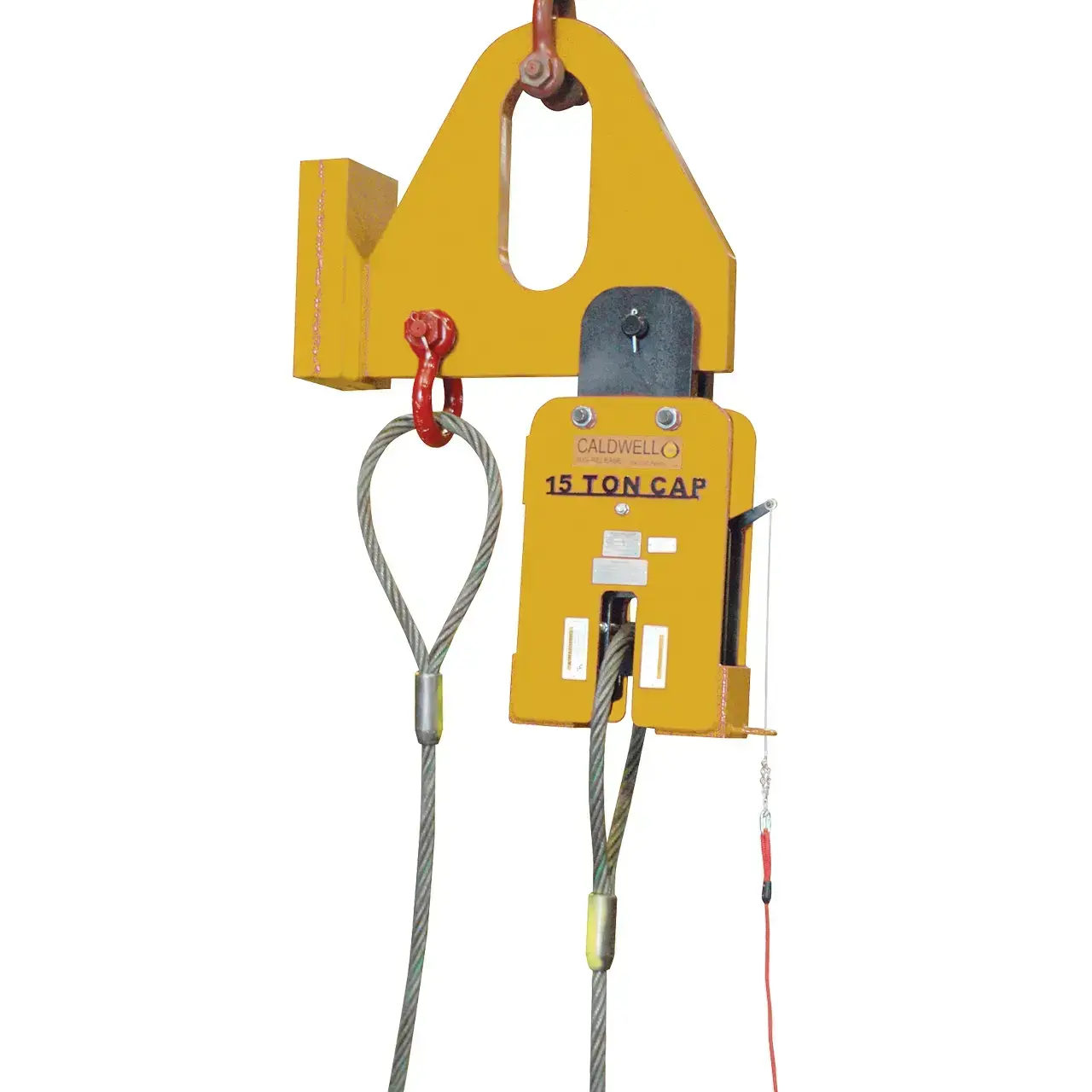

Extended Capacity Rig-Release®

When you need even more lifting power, the Extended Capacity Rig-Release® Hook is ready to go. Choose from a 10-ton Remote Controlled unit or a 20- or 30-ton Manual Unit for the big jobs.

Product Features

For basket hitch only
Designed for rugged outdoor use
20 or 30 ton capacity manual release units
10 ton capacity radio controlled release units
Easy to use - simply rig, lift, set, and release
Oversized bail for easy mounting on crane hook
Counter balanced to hang level
Designed and manufactured to ASME standards

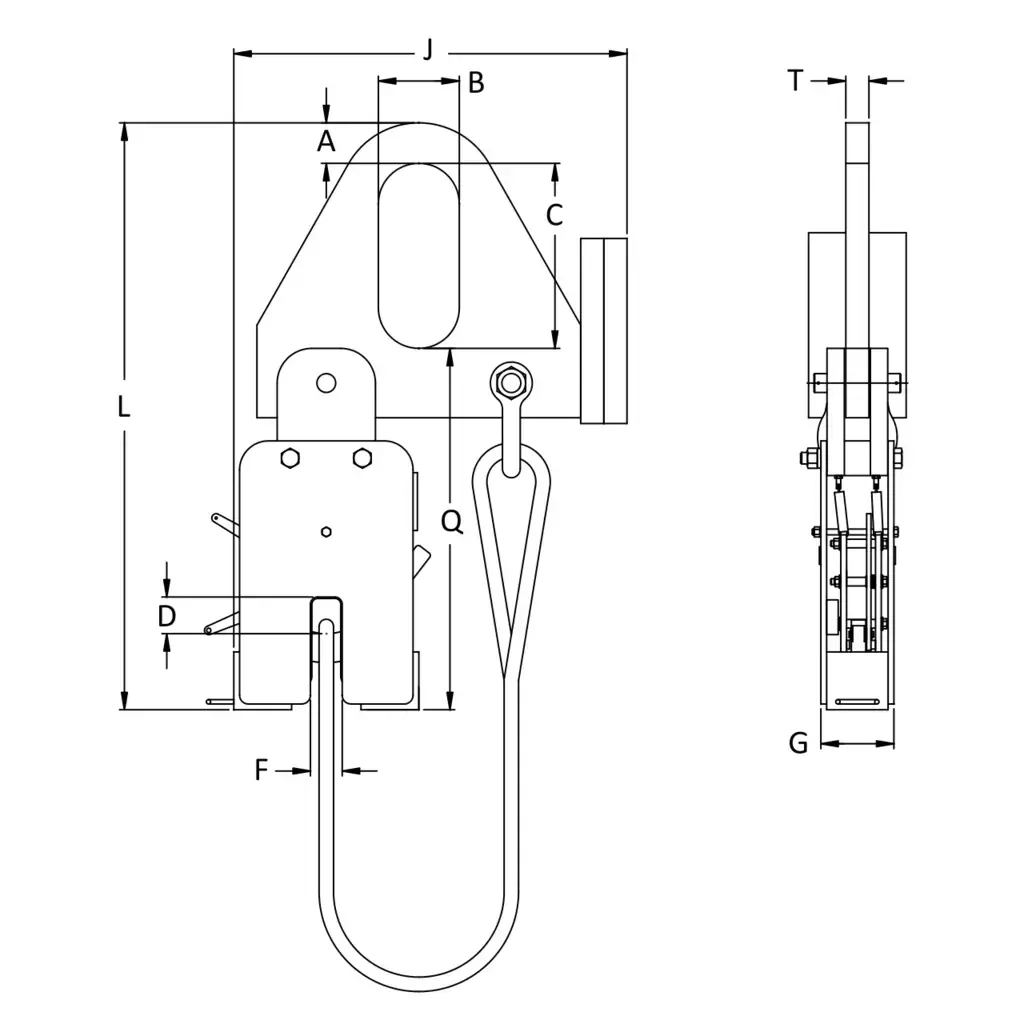

Model Number

Capacity (tons)

Bail Depth (in.)

Bail Open W (in.)

Bail Open Ht (in.)

Bail Thick (in.)

HR Min (in.)

Weight (lbs.)

Max Unit Ht w/ Bail (in.)

Max W w/ Bail (in.)

Rig Release W (in.)

Rope Open Max Ht (in.)

Rope Open Max W (in.)

In Stock

Price

Model Number

RR-10R-EC

Capacity (tons): 10

Bail Depth (in.): 2

Bail Open W (in.): 4

Bail Open Ht (in.): 7

Bail Thick (in.): 1.25

HR Min (in.): 22

Weight (lbs.): 275

Max Unit Ht w/ Bail (in.): 31

Max W w/ Bail (in.): 30.31

Rig Release W (in.): 5

Rope Open Max Ht (in.): 1.83

Rope Open Max W (in.): 1.5

In Stock

Price

Model Number

RR-20-EC

Capacity (tons): 20

Bail Depth (in.): 2.5

Bail Open W (in.): 5

Bail Open Ht (in.): 9

Bail Thick (in.): 1.5

HR Min (in.): 0

Weight (lbs.): 425

Max Unit Ht w/ Bail (in.): 0

Max W w/ Bail (in.): 0

Rig Release W (in.): 0

Rope Open Max Ht (in.): 2.12

Rope Open Max W (in.): 0

In Stock

Price

Model Number

RR-30-EC

Capacity (tons): 30

Bail Depth (in.): 3.5

Bail Open W (in.): 7

Bail Open Ht (in.): 16

Bail Thick (in.): 2

HR Min (in.): 0

Weight (lbs.): 675

Max Unit Ht w/ Bail (in.): 0

Max W w/ Bail (in.): 0

Rig Release W (in.): 0

Rope Open Max Ht (in.): 2.75

Rope Open Max W (in.): 0

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.

Model RR-EC

Extended Capacity Rig-Release® - Basket Hitch

Product Features
