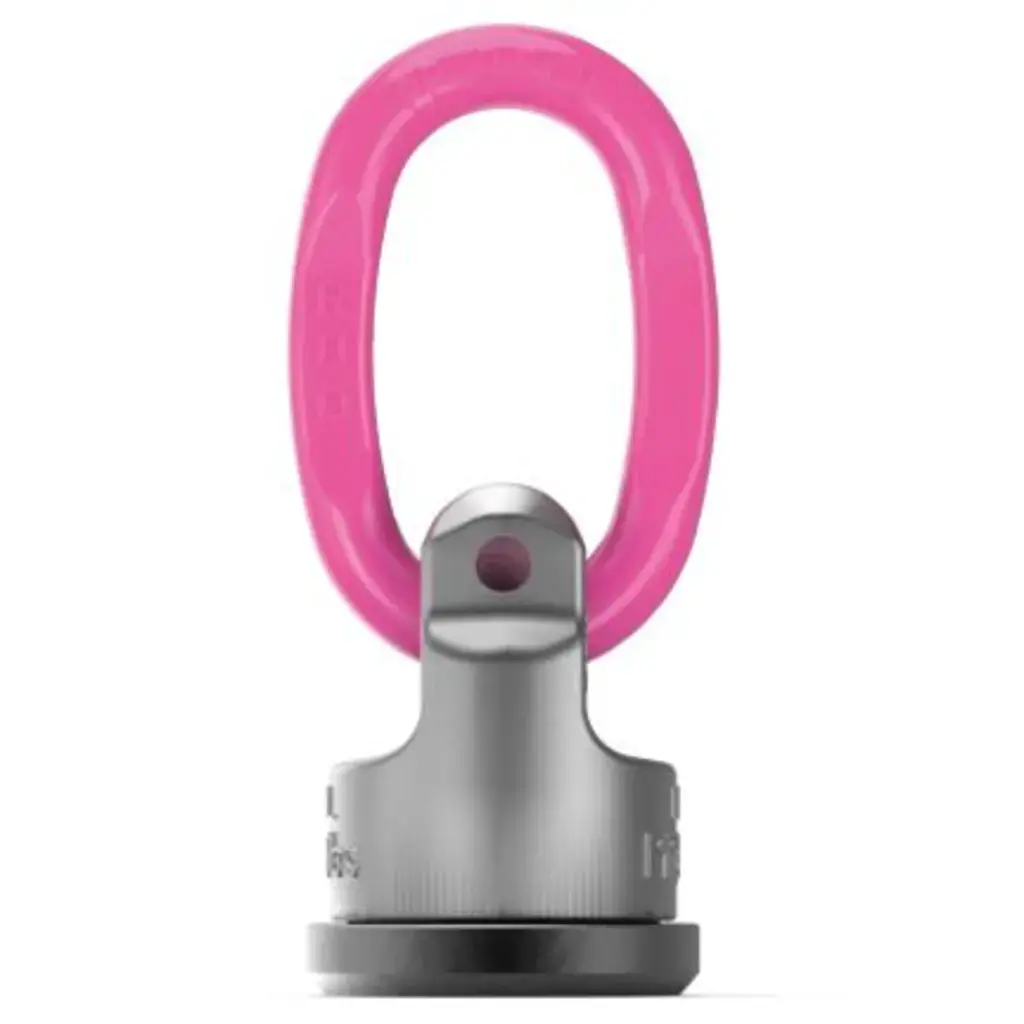

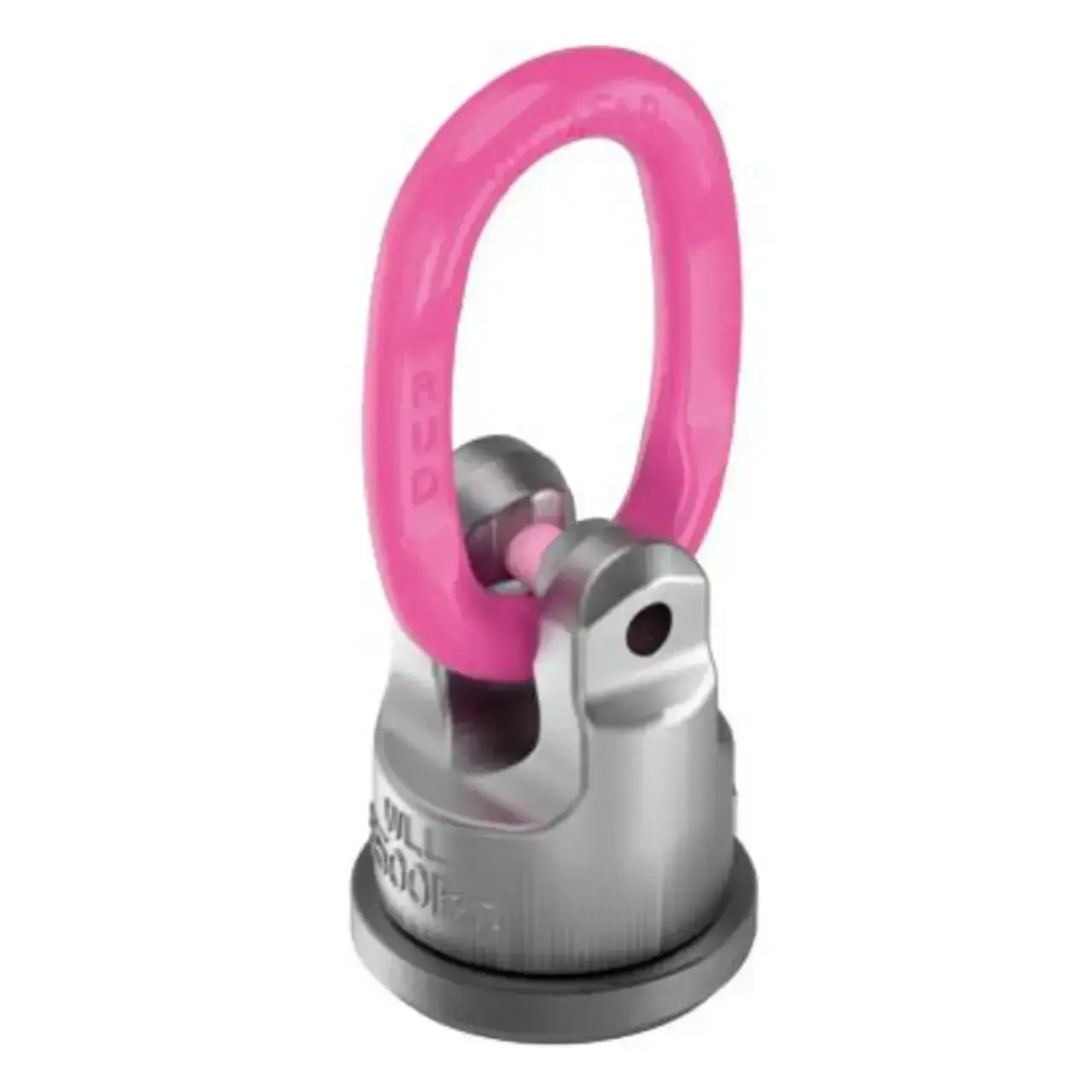

WPP-B PowerPoint® ring connection

ring connection

Product Features

Large WLL range 0.63 t – 8 t
Weldable eye connection for hook suspension
Lowest kinking possibility due to cardan joint

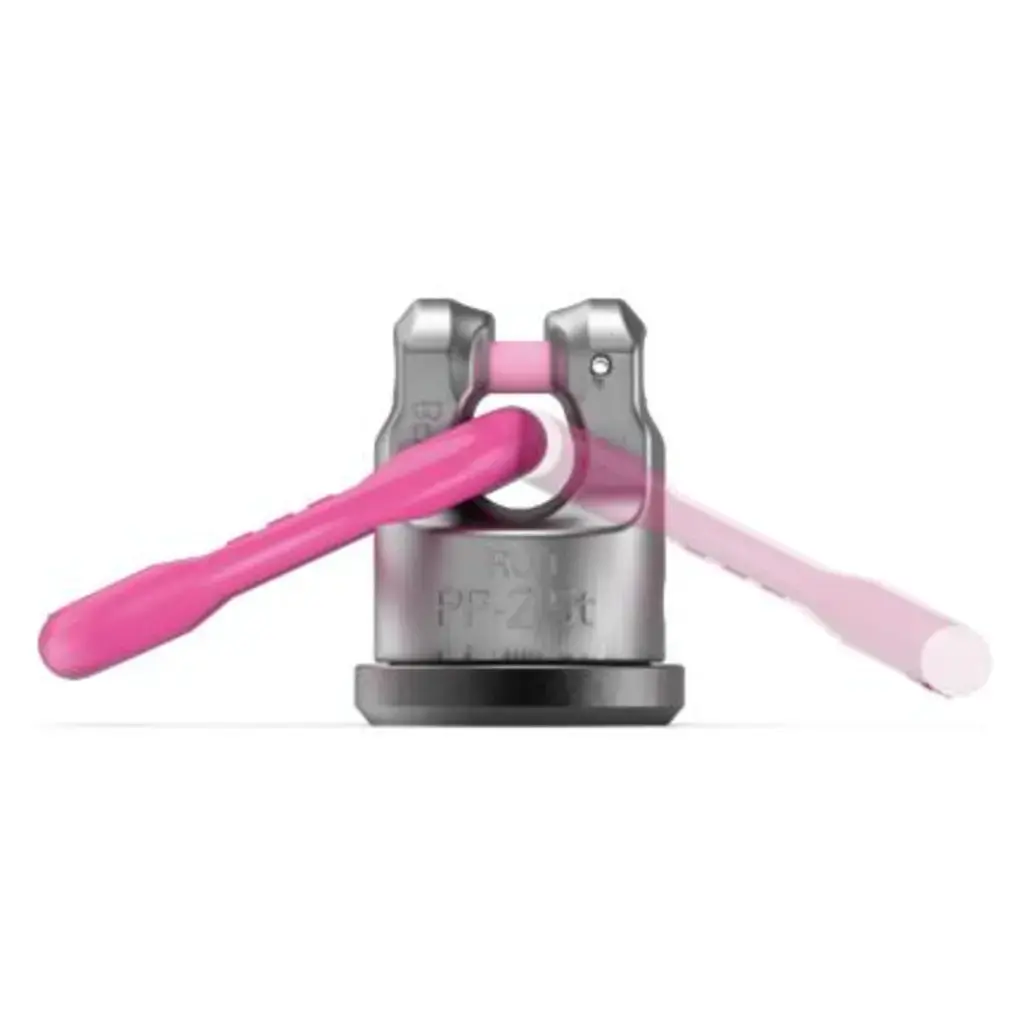

Can be rotated parallel to the weld-on surface under rated WLL
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

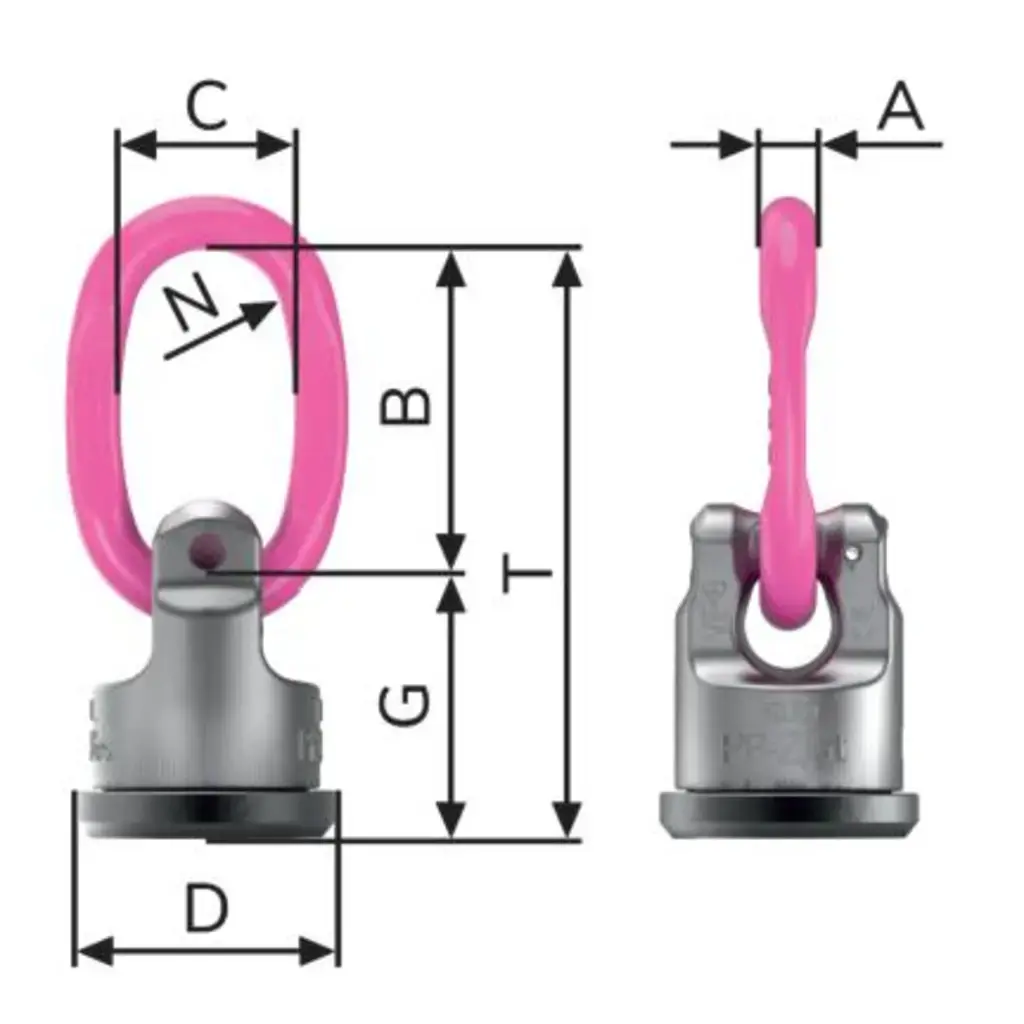

Model Number

WLL (lbs.)

A (mm)

B (mm)

C (mm)

D (mm)

G (mm)

N (mm)

Pitch T (mm)

In Stock

Price

Model Number

7989954

WLL (lbs.): 1390

A (mm): 9

B (mm): 65

C (mm): 35

D (mm): 40

G (mm): 40

N (mm): 15

Pitch T (mm): 105

In Stock

Price

$142.00

Model Number

7989955

WLL (lbs.): 3300

A (mm): 11

B (mm): 65

C (mm): 35

D (mm): 46

G (mm): 50

N (mm): 15

Pitch T (mm): 115

In Stock

Price

Model Number

7989956

WLL (lbs.): 5500

A (mm): 13

B (mm): 74

C (mm): 40

D (mm): 61

G (mm): 61

N (mm): 18

Pitch T (mm): 135

In Stock

Price

$238.00

Model Number

7989957

WLL (lbs.): 8820

A (mm): 16

B (mm): 95

C (mm): 45

D (mm): 78

G (mm): 77

N (mm): 20

Pitch T (mm): 172

In Stock

Price

$324.00

Model Number

7989958

WLL (lbs.): 11000

A (mm): 19

B (mm): 130

C (mm): 60

D (mm): 95

G (mm): 93

N (mm): 25

Pitch T (mm): 223

In Stock

Price

$472.00

Model Number

7989959

WLL (lbs.): 17630

A (mm): 24

B (mm): 140

C (mm): 65

D (mm): 100

G (mm): 102

N (mm): 28

Pitch T (mm): 242

In Stock

Price

$557.00

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
