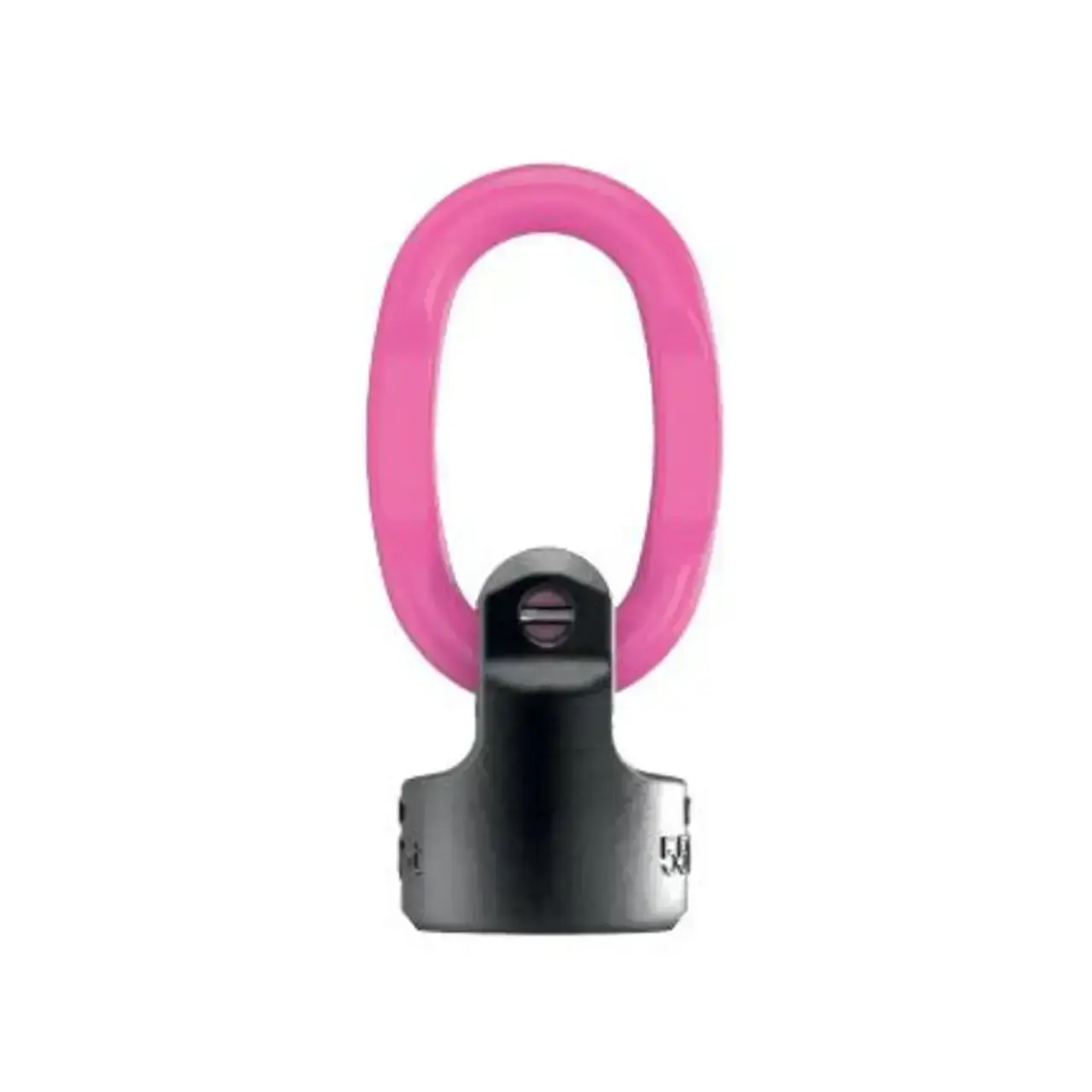

WPPH-B PowerPoint® ring connection

ring connection

Product Features

Large WLL range 0.63 t – 8 t
Weldable eye connection for hook suspension
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

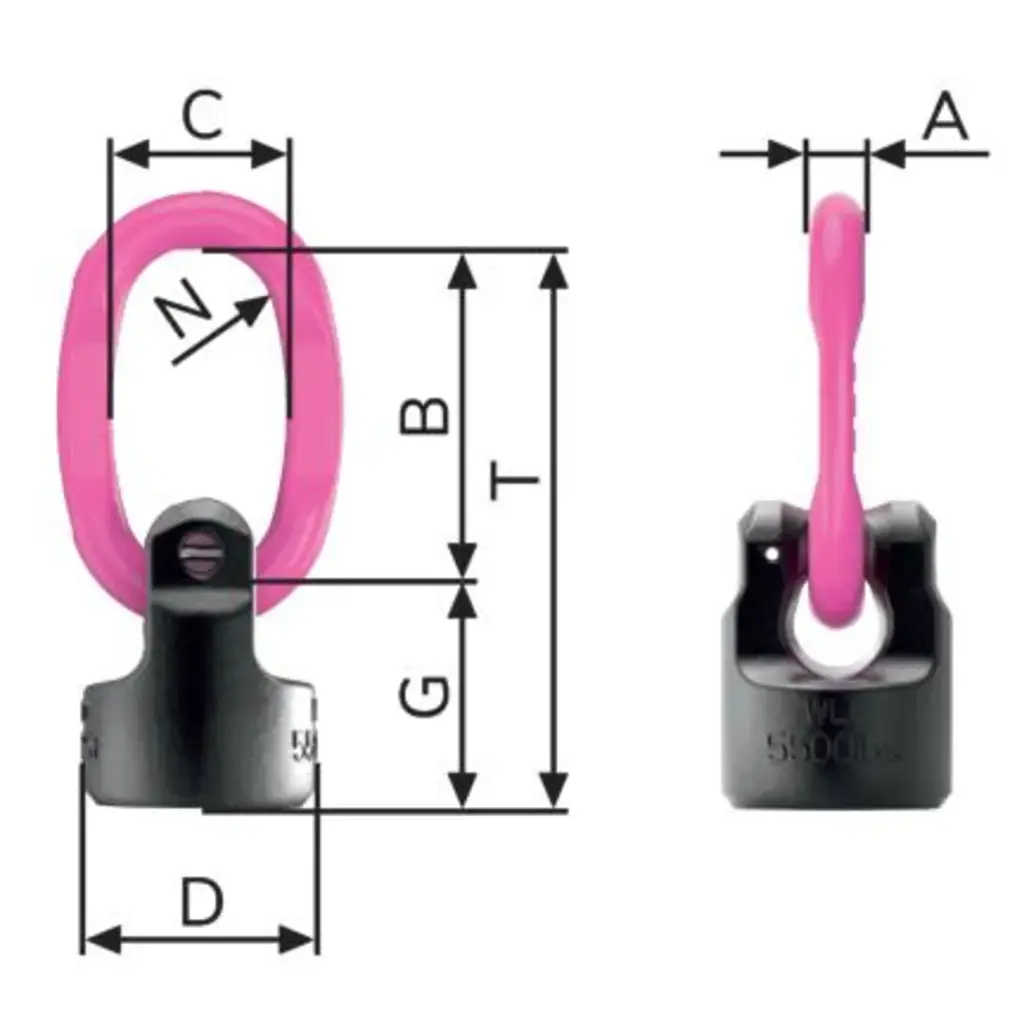

Model Number

WLL (lbs.)

A (mm)

B (mm)

C (mm)

D (mm)

G (mm)

N (mm)

Pitch T (mm)

In Stock

Price

Model Number

7989976

WLL (lbs.): 1390

A (mm): 9

B (mm): 65

C (mm): 35

D (mm): 34

G (mm): 34

N (mm): 15

Pitch T (mm): 99

In Stock

Price

$81.00

Model Number

7989977

WLL (lbs.): 3300

A (mm): 11

B (mm): 65

C (mm): 35

D (mm): 40

G (mm): 44

N (mm): 15

Pitch T (mm): 109

In Stock

Price

$126.00

Model Number

7989978

WLL (lbs.): 5500

A (mm): 13

B (mm): 74

C (mm): 40

D (mm): 53

G (mm): 53

N (mm): 18

Pitch T (mm): 127

In Stock

Price

$151.00

Model Number

7989979

WLL (lbs.): 8820

A (mm): 16

B (mm): 95

C (mm): 45

D (mm): 68

G (mm): 66

N (mm): 20

Pitch T (mm): 161

In Stock

Price

$205.00

Model Number

7989980

WLL (lbs.): 11000

A (mm): 21

B (mm): 130

C (mm): 60

D (mm): 83

G (mm): 79

N (mm): 25

Pitch T (mm): 209

In Stock

Price

$308.00

Model Number

7989981

WLL (lbs.): 17630

A (mm): 24

B (mm): 140

C (mm): 65

D (mm): 88

G (mm): 88

N (mm): 28

Pitch T (mm): 228

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
