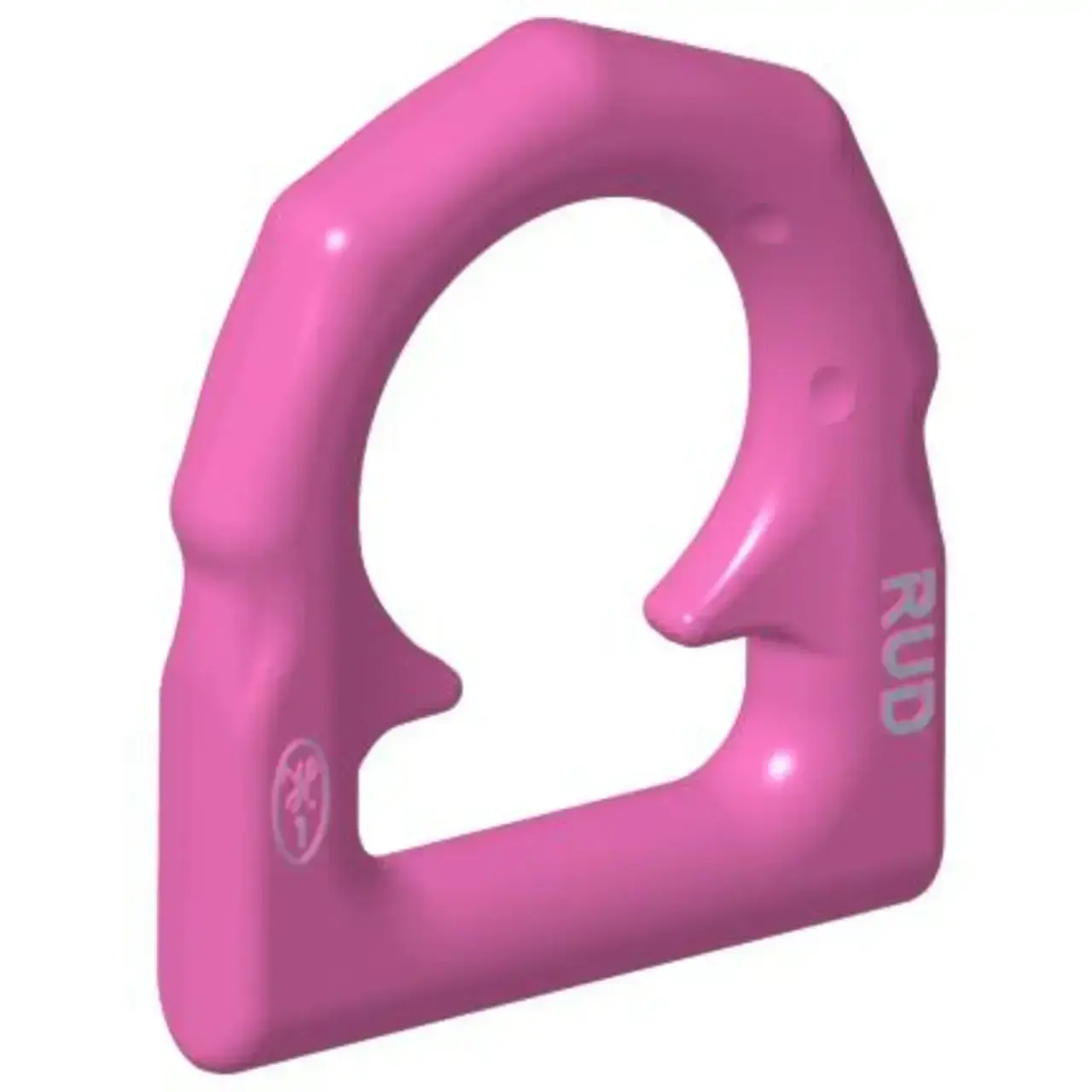

VLBS-Ring

Ring

Large WLL range 1.5 t – 16 t
Functionally optimised shape of the suspension ring for better support at side loading and protection of the clamping spring
WLL possible up to 90° in load ring plane
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

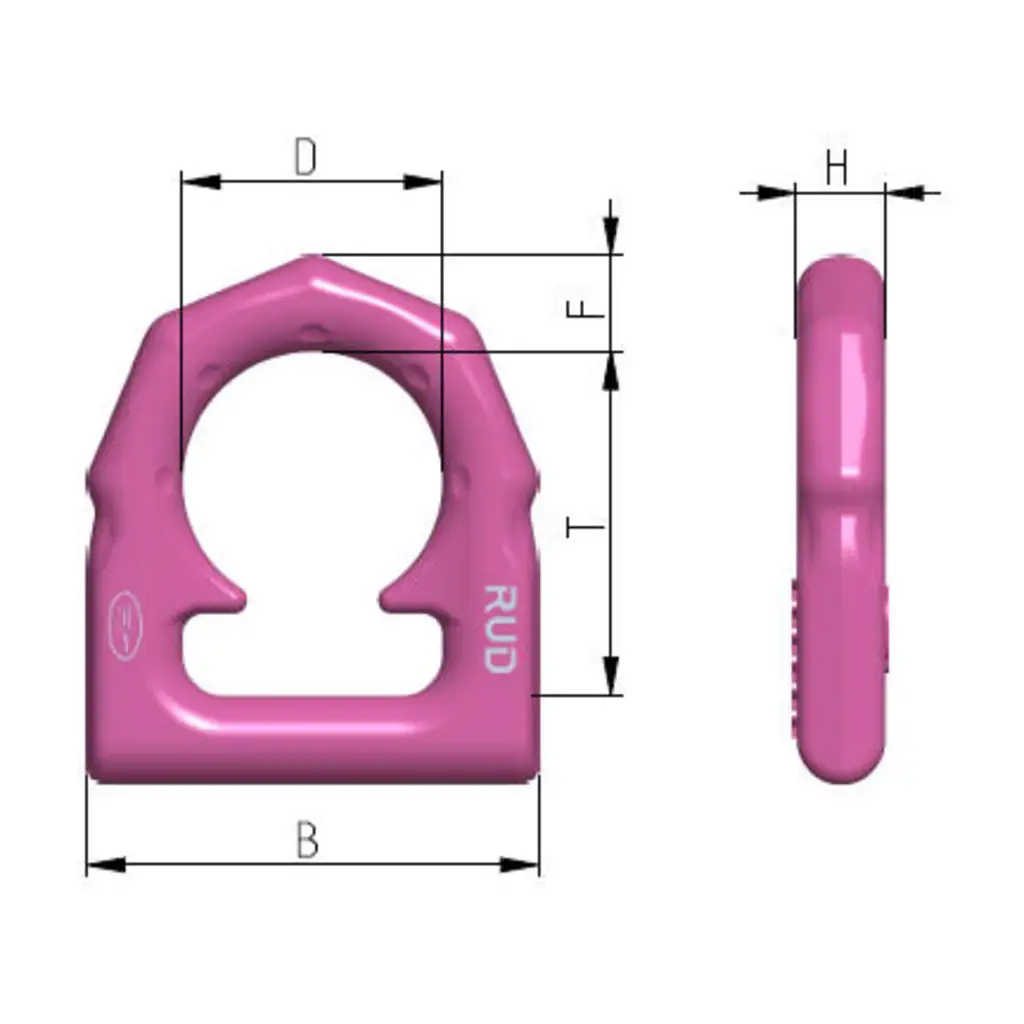

Model Number

WLL (lbs.)

B (mm)

D (mm)

F (mm)

H (mm)

Pitch T (mm)

In Stock

Price

Model Number

7906583

WLL (lbs.): 5500

B (mm): 77

D (mm): 45

F (mm): 16

H (mm): 16

Pitch T (mm): 58

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
