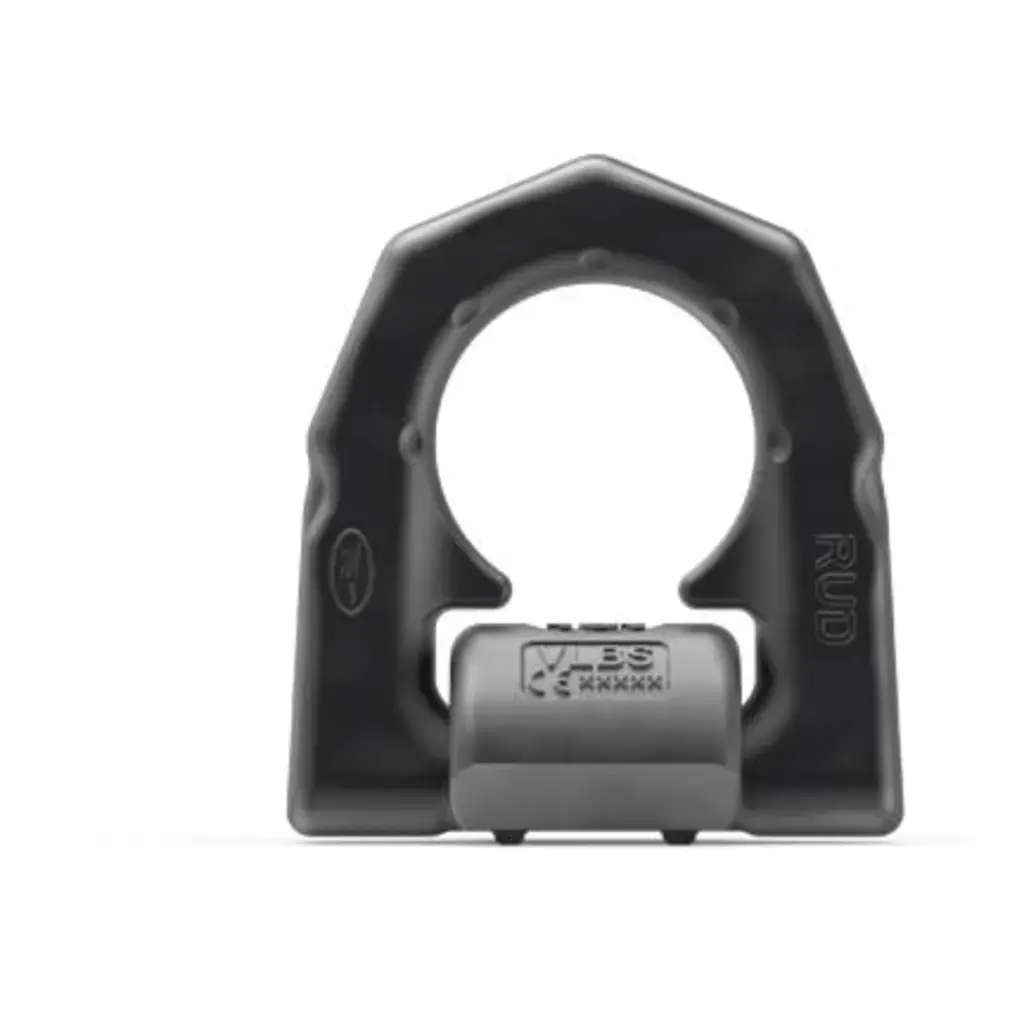

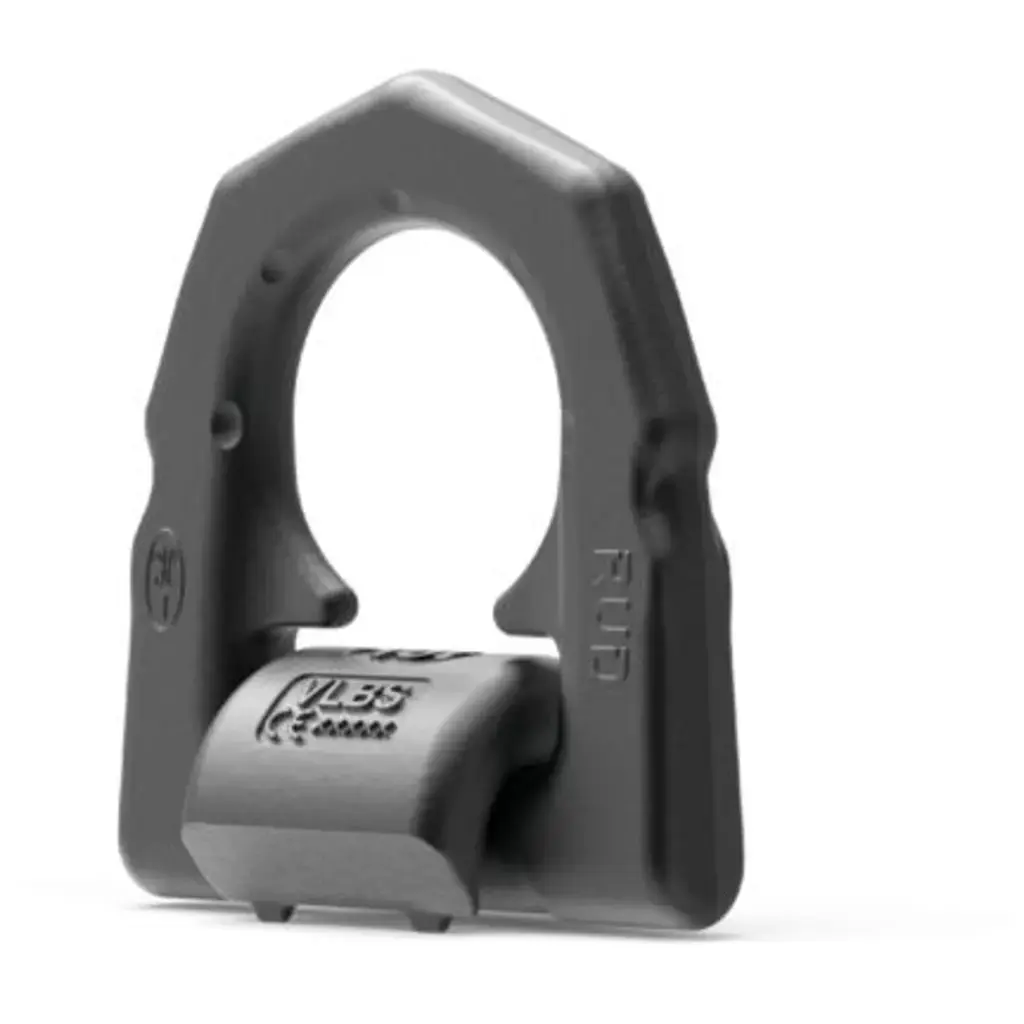

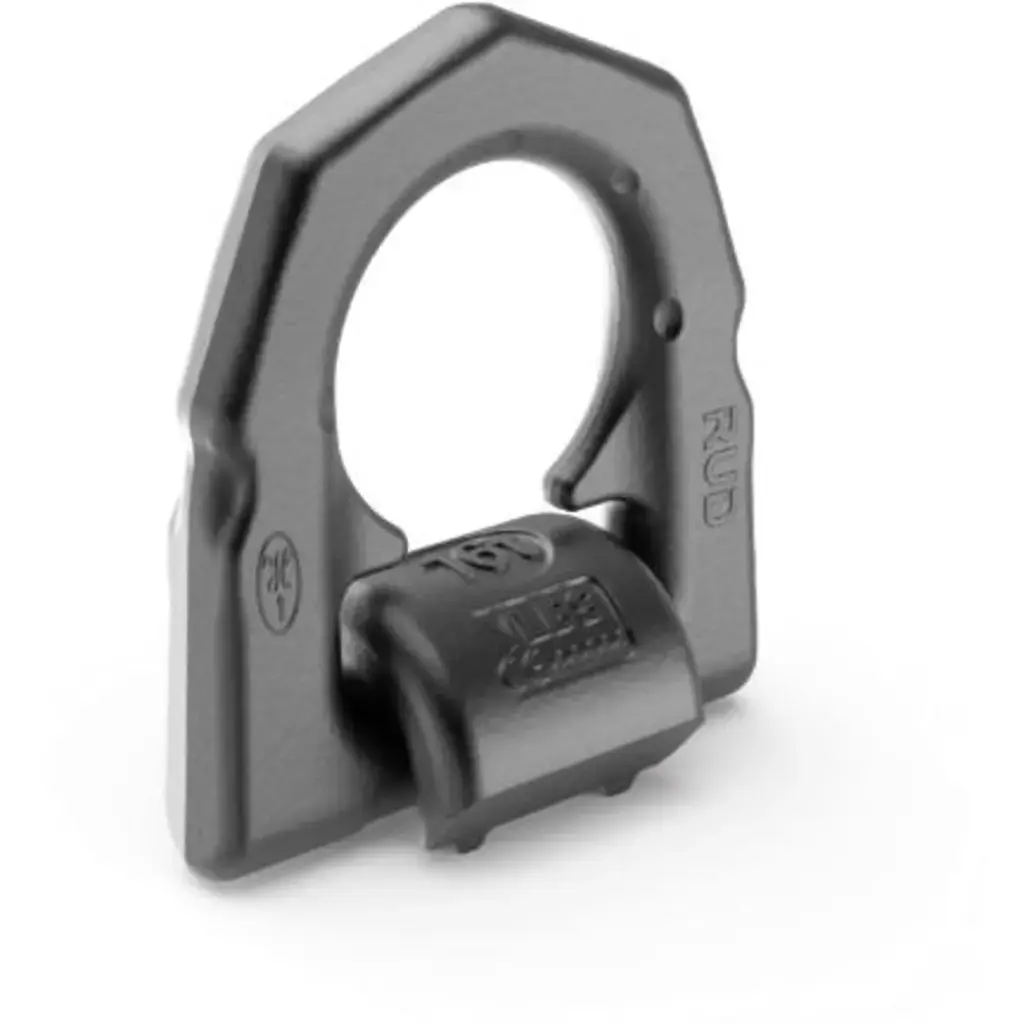

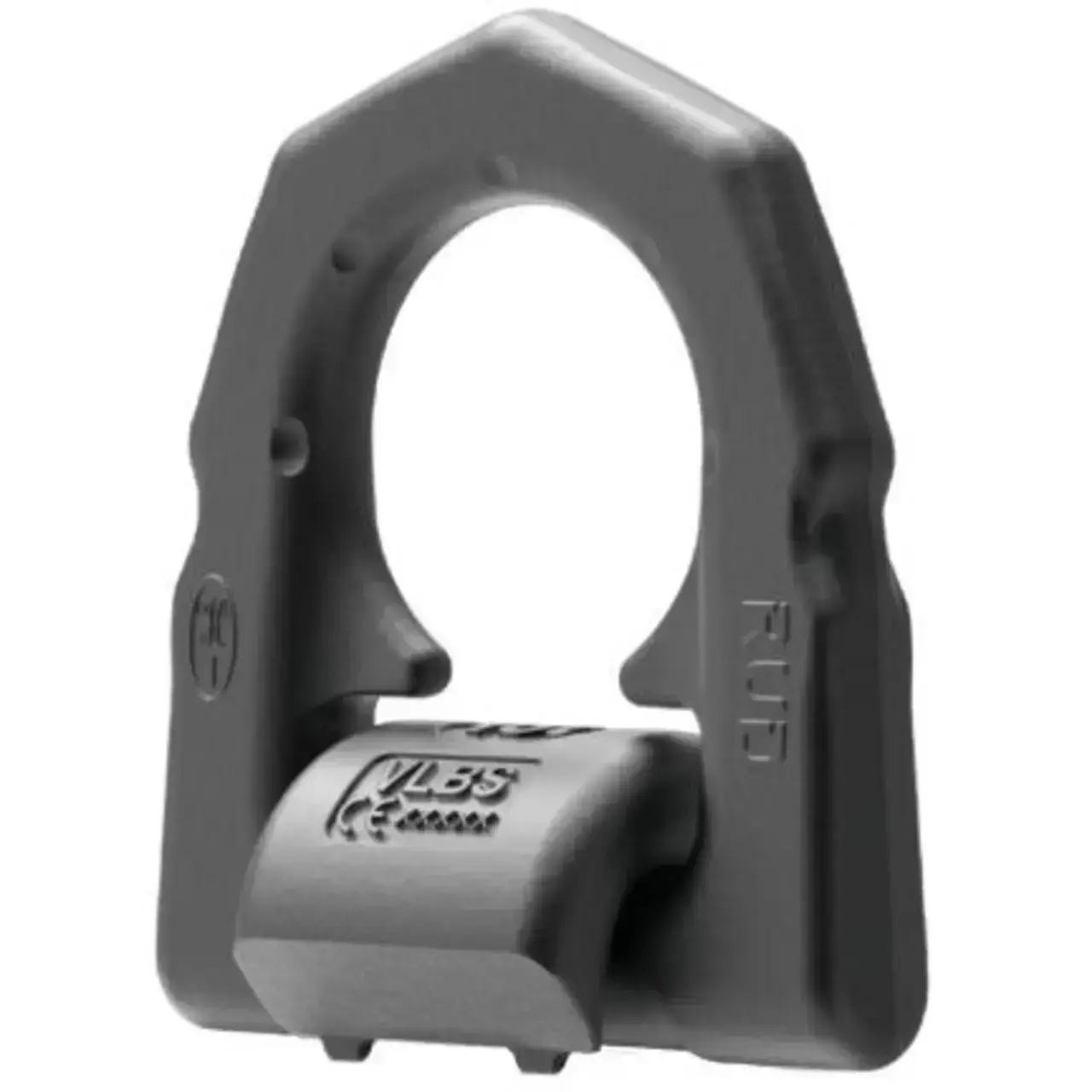

VLBS-U-LT - Load ring for welding, especially for low temperature

Load ring for welding, especially for low temperature

Product Features

Suspension ring can be pivoted through 180°
Proof of deep temperature ability down to - 45° C via notch bar impact test
Suspension ring adjustable in the required position
Suspension ring and weld-on block is captive due to the retaining spring
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

Model Number

WLL (tons)

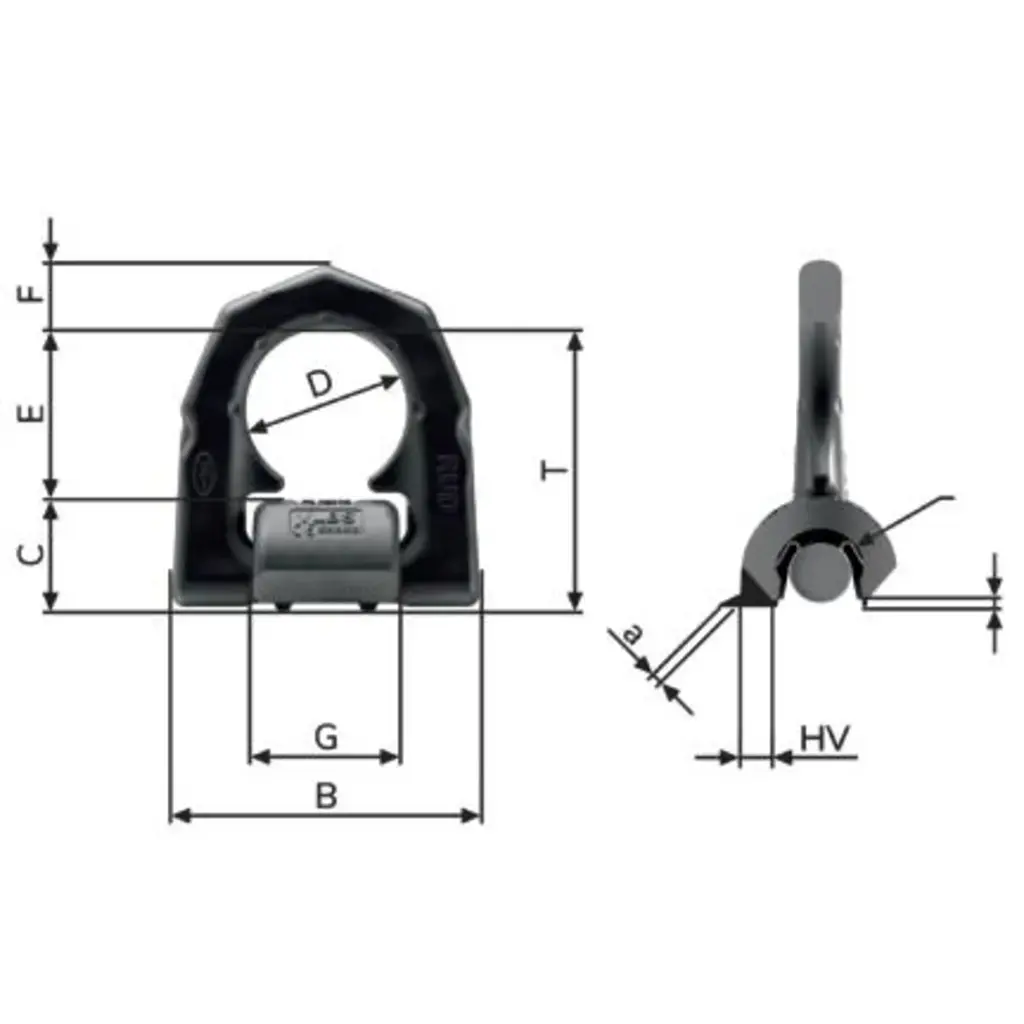

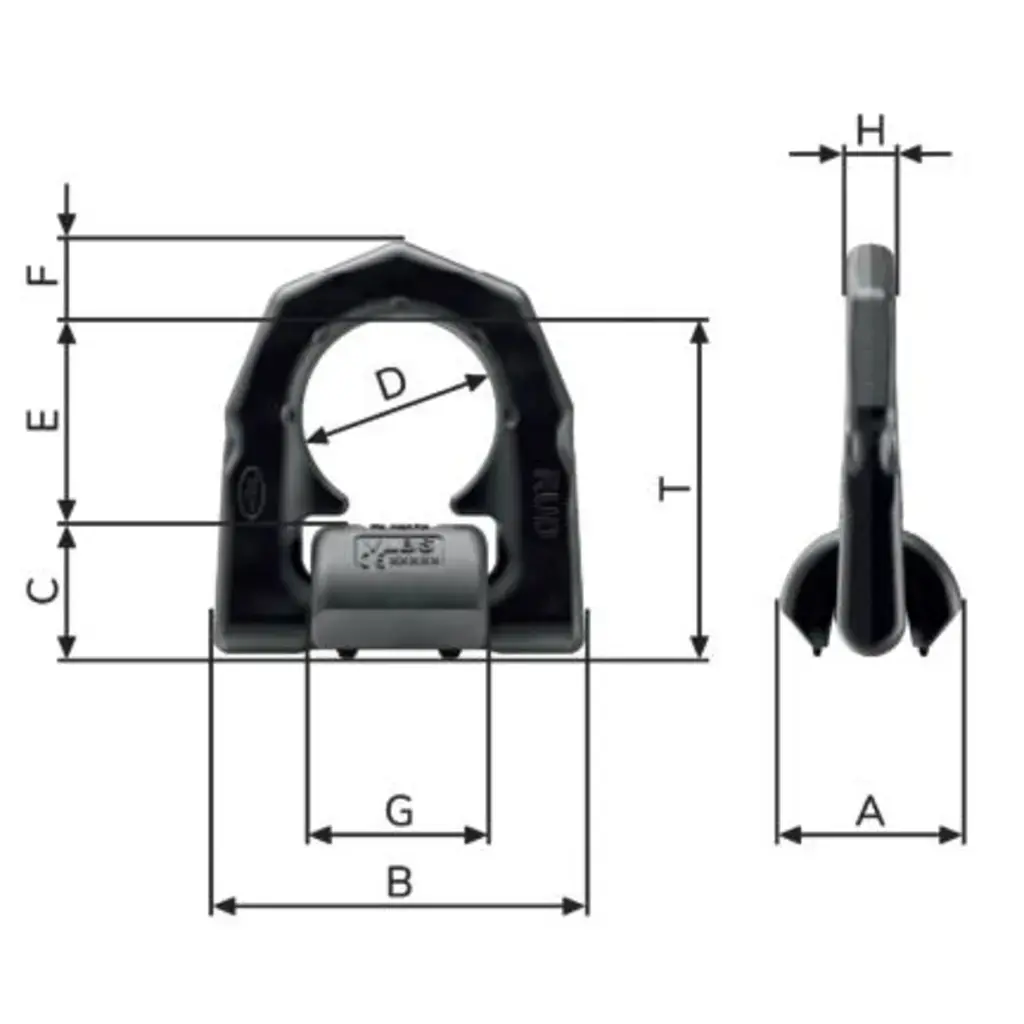

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

Pitch T (mm)

In Stock

Price

Model Number

7903522

WLL (tons): 2.5

A (mm): 38

B (mm): 77

C (mm): 28

D (mm): 45

E (mm): 47

F (mm): 16

G (mm): 40

H (mm): 16

Pitch T (mm): 75

In Stock

Price

Model Number

7903400

WLL (tons): 4

A (mm): 42

B (mm): 87

C (mm): 31

D (mm): 51

E (mm): 52

F (mm): 18

G (mm): 46

H (mm): 16

Pitch T (mm): 83

In Stock

Price

Model Number

7903684

WLL (tons): 6.7

A (mm): 61

B (mm): 115

C (mm): 44

D (mm): 67

E (mm): 73

F (mm): 24

G (mm): 60

H (mm): 22.5

Pitch T (mm): 117

In Stock

Price

Model Number

7903135

WLL (tons): 10

A (mm): 75

B (mm): 129

C (mm): 55

D (mm): 67

E (mm): 71

F (mm): 26.5

G (mm): 60

H (mm): 26.5

Pitch T (mm): 126

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
