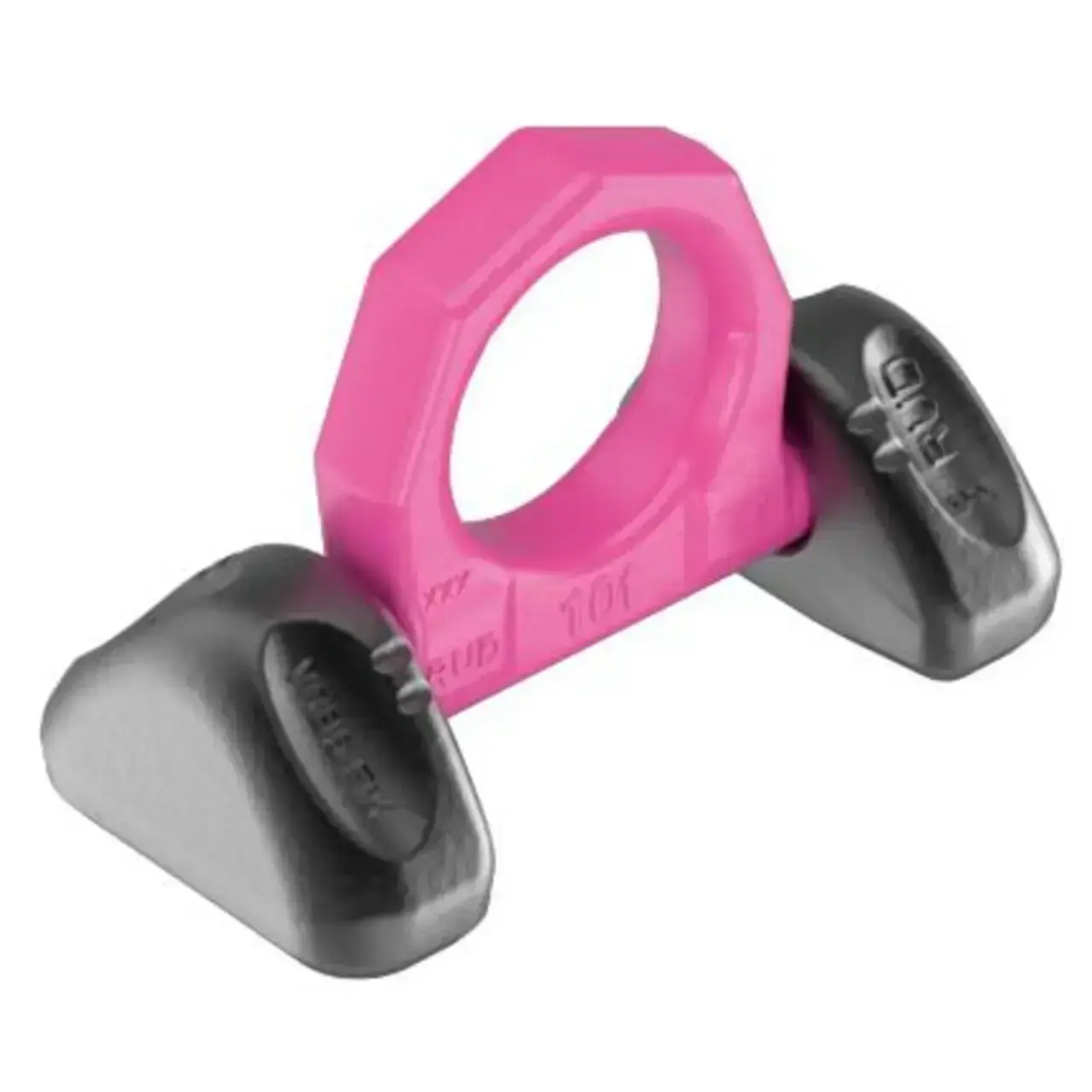

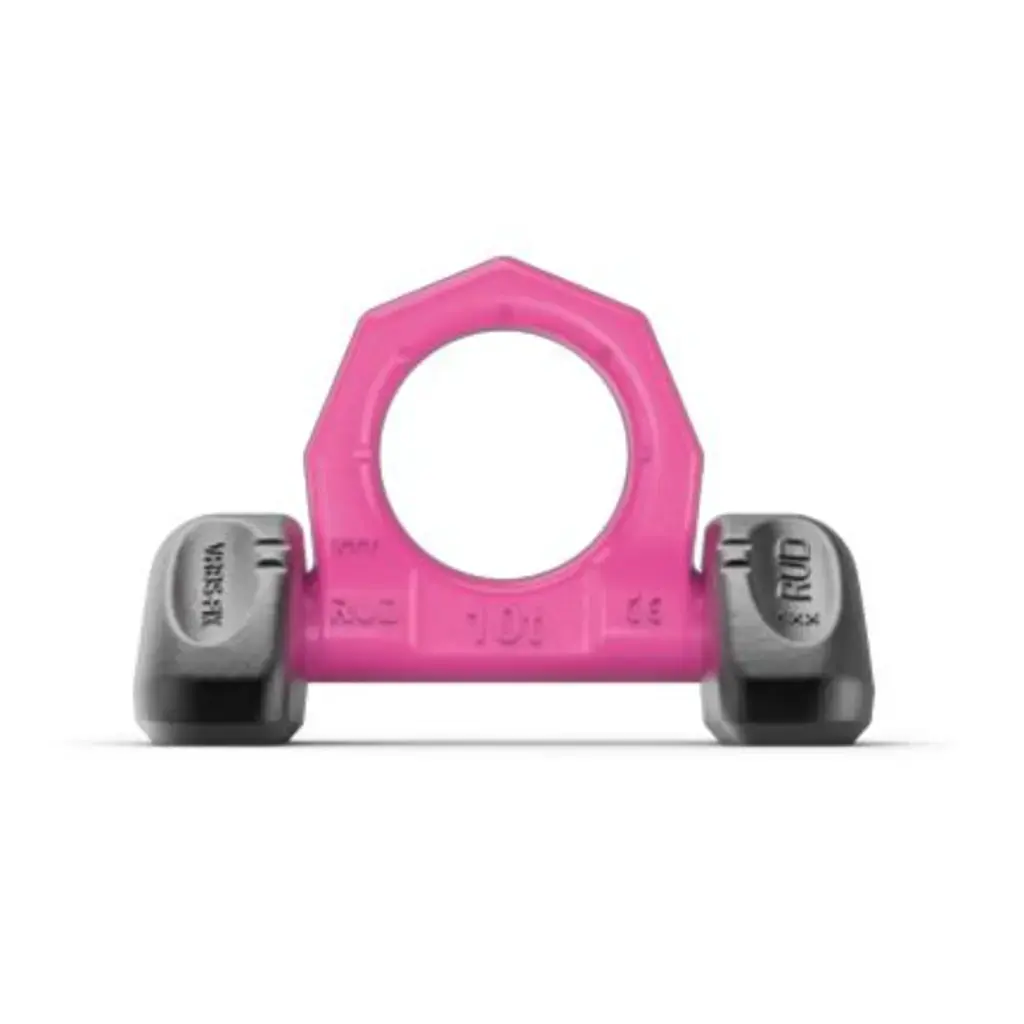

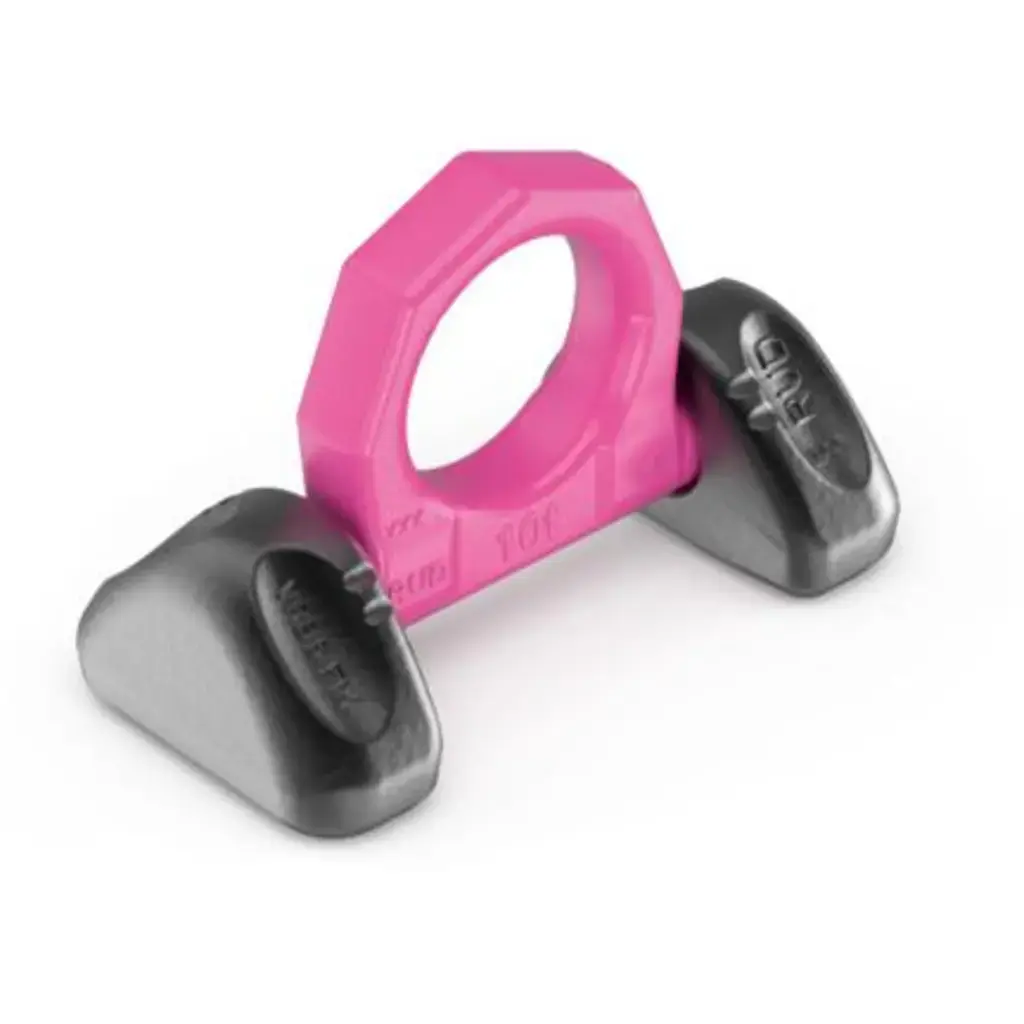

VRBS-FIX - Load ring for welding for circumferential weld seam

Load ring for welding for circumferential weld seam

Product Features

Large WLL range 4 t – 100 t
Split force introduction thanks to multiple point fixing
Suspension ring can be pivoted through 180°
WLL possible up to 90° in load ring plane
Thanks to the weld arrangement (circular fillet weld), no contact/crevice corrosion can occur
Forged markings for easy determination of the load angle
Wear markings for easy determination of wear
The clamping spring achieves noise reduction andkeeps the suspension ring in the desired direction
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

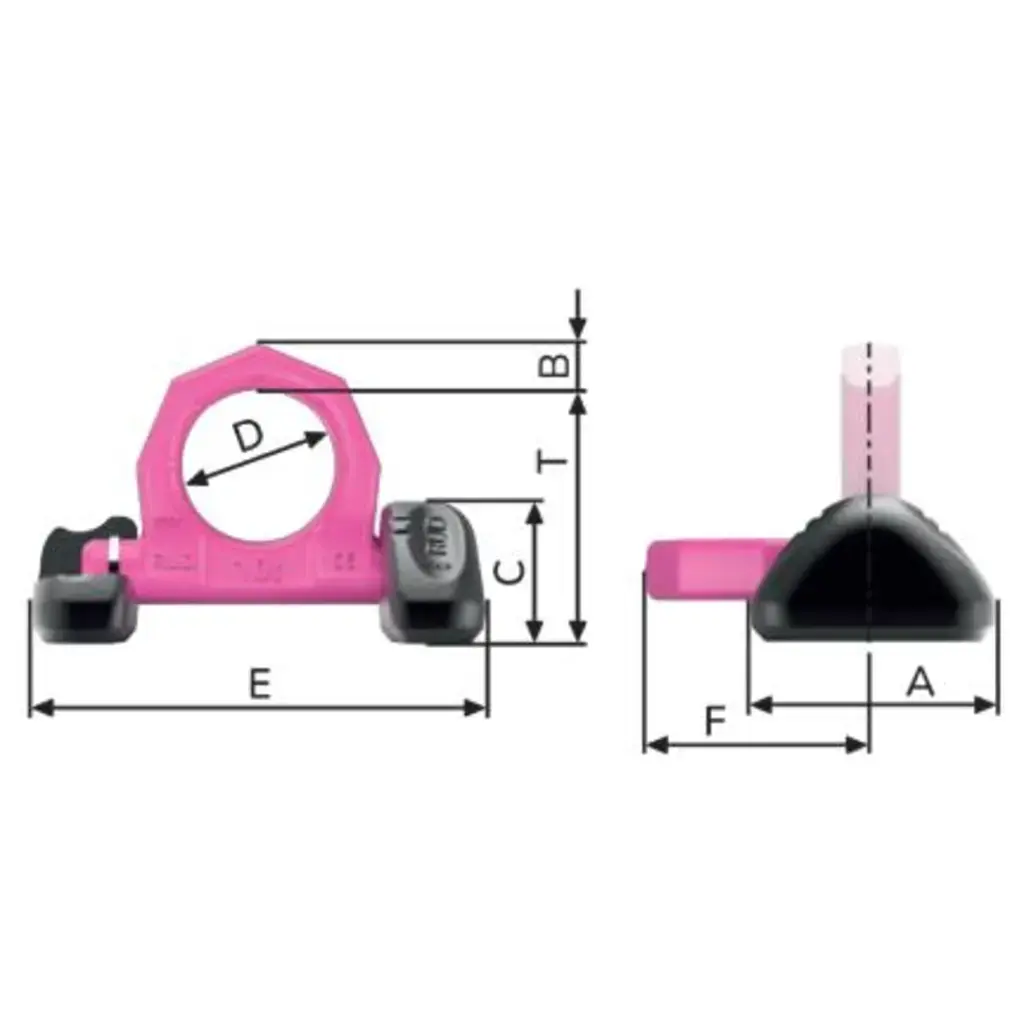

Model Number

WLL (tons)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

Pitch T (mm)

In Stock

Price

Model Number

7999019

WLL (tons): 4

A (mm): 60

B (mm): 14

C (mm): 39

D (mm): 48

E (mm): 132

F (mm): 69

Pitch T (mm): 74

In Stock

Price

Model Number

7999020

WLL (tons): 6.7

A (mm): 88

B (mm): 20

C (mm): 50

D (mm): 60

E (mm): 167

F (mm): 91

Pitch T (mm): 97

In Stock

Price

Model Number

7999021

WLL (tons): 10

A (mm): 100

B (mm): 22

C (mm): 60

D (mm): 65

E (mm): 191

F (mm): 100

Pitch T (mm): 108

In Stock

Price

Model Number

7999301

WLL (tons): 16

A (mm): 130

B (mm): 30

C (mm): 72

D (mm): 90

E (mm): 267

F (mm): 134

Pitch T (mm): 140

In Stock

Price

Model Number

7999302

WLL (tons): 31.5

A (mm): 160

B (mm): 42

C (mm): 99

D (mm): 130

E (mm): 366

F (mm): 195

Pitch T (mm): 202

In Stock

Price

Model Number

7906272

WLL (tons): 50

A (mm): 246

B (mm): 70

C (mm): 148

D (mm): 230

E (mm): 596

F (mm): 335

Pitch T (mm): 330

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
