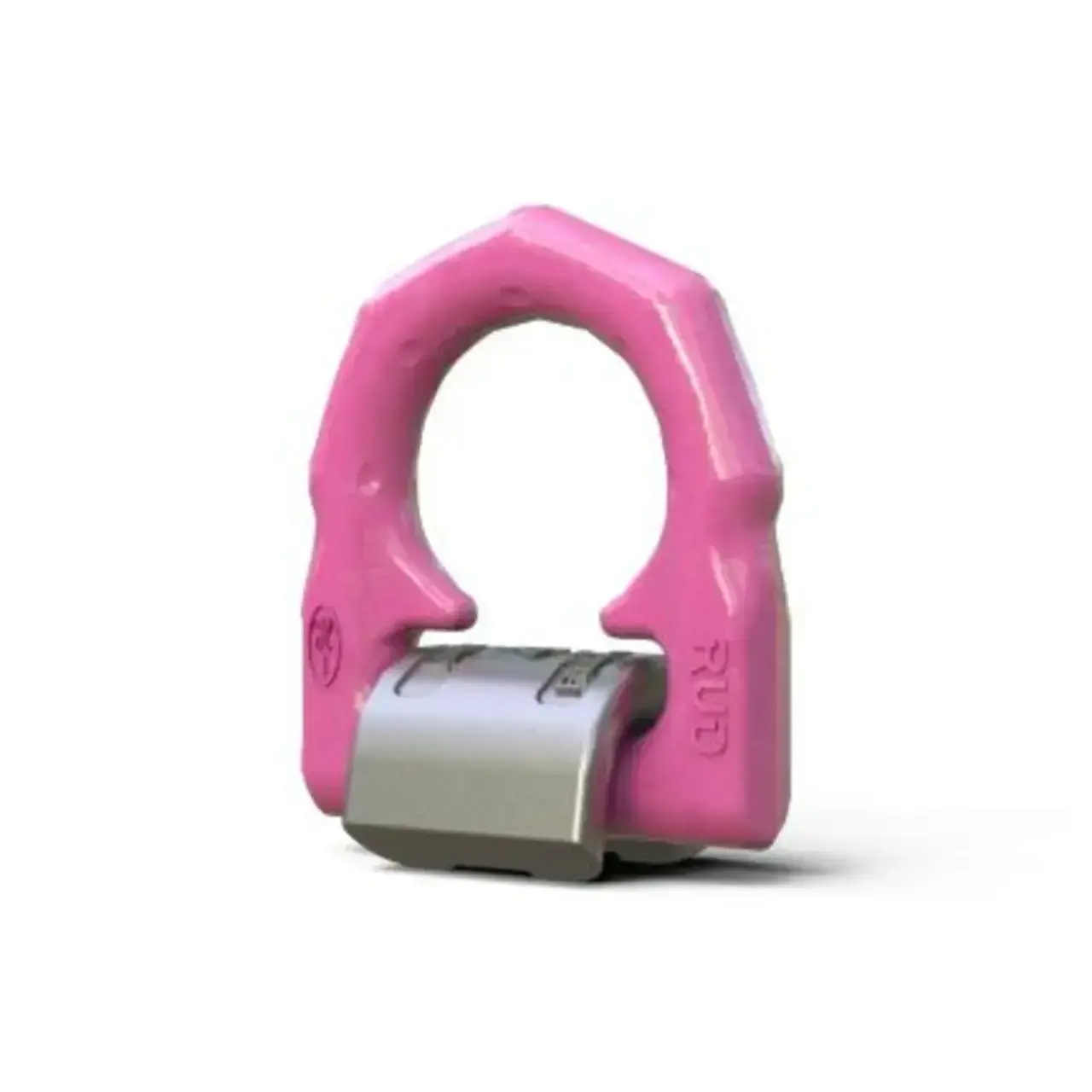

VLBS-P - Load ring for welding, especially for pipes

Load ring for welding, especially for pipes

Suspension ring pivots 180°
Suspension ring & weld-on-block of the VLBS-U are undetachable
Suspension ring can be angled into position (VLBS-U)
The VLBS-P must only be weld on curved interfaces resp. round shaped parts (f.e. tubes) with an outside diameter of Ø 82 mm up to Ø 220 mm, or an outside radius of R41 up to R110.
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

Model Number

WLL (tons)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

Pitch T (mm)

In Stock

Price

Model Number

7995472

WLL (tons): 4

A (mm): 45

B (mm): 87

C (mm): 35

D (mm): 51

E (mm): 52

F (mm): 18

G (mm): 46

H (mm): 16.5

Pitch T (mm): 0

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
