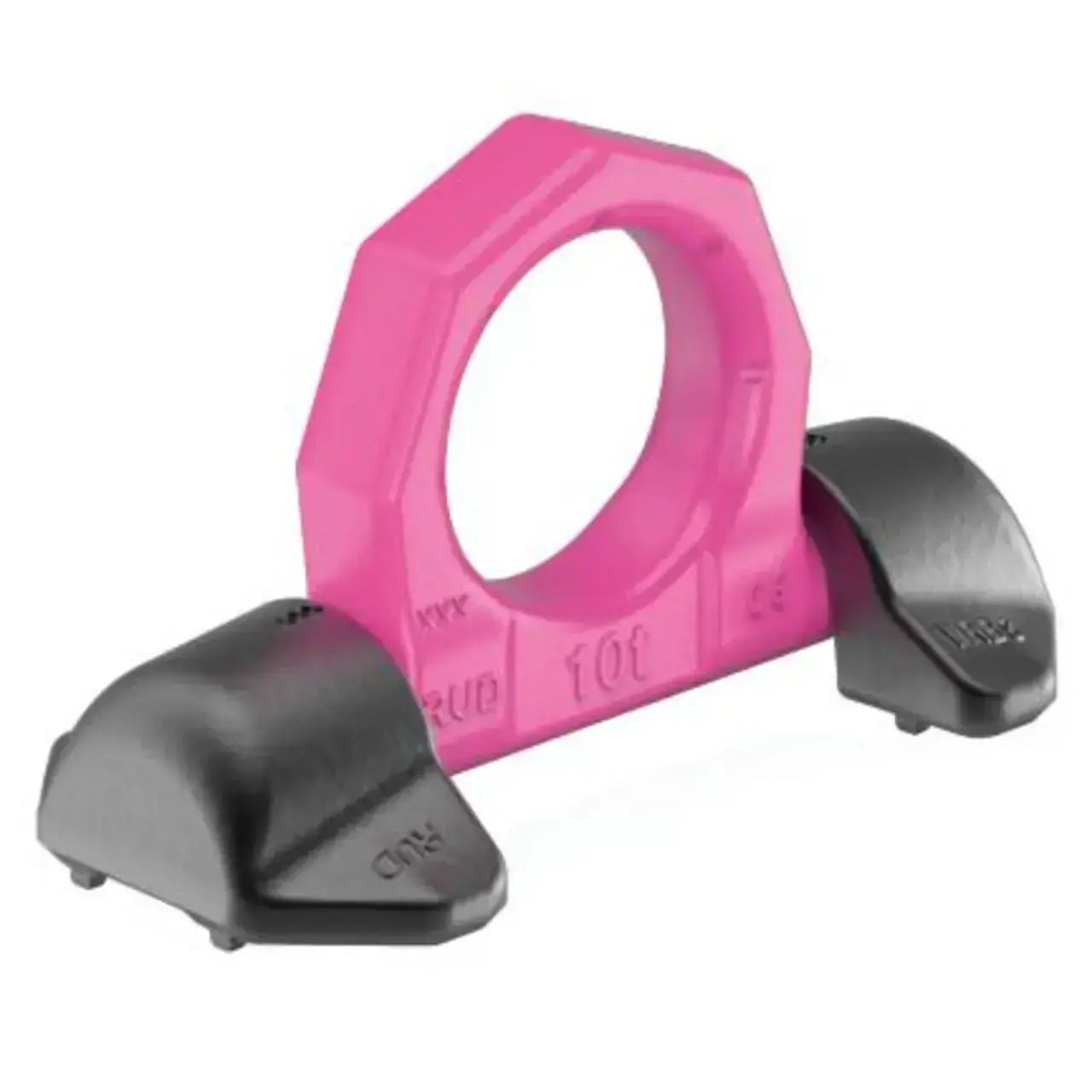

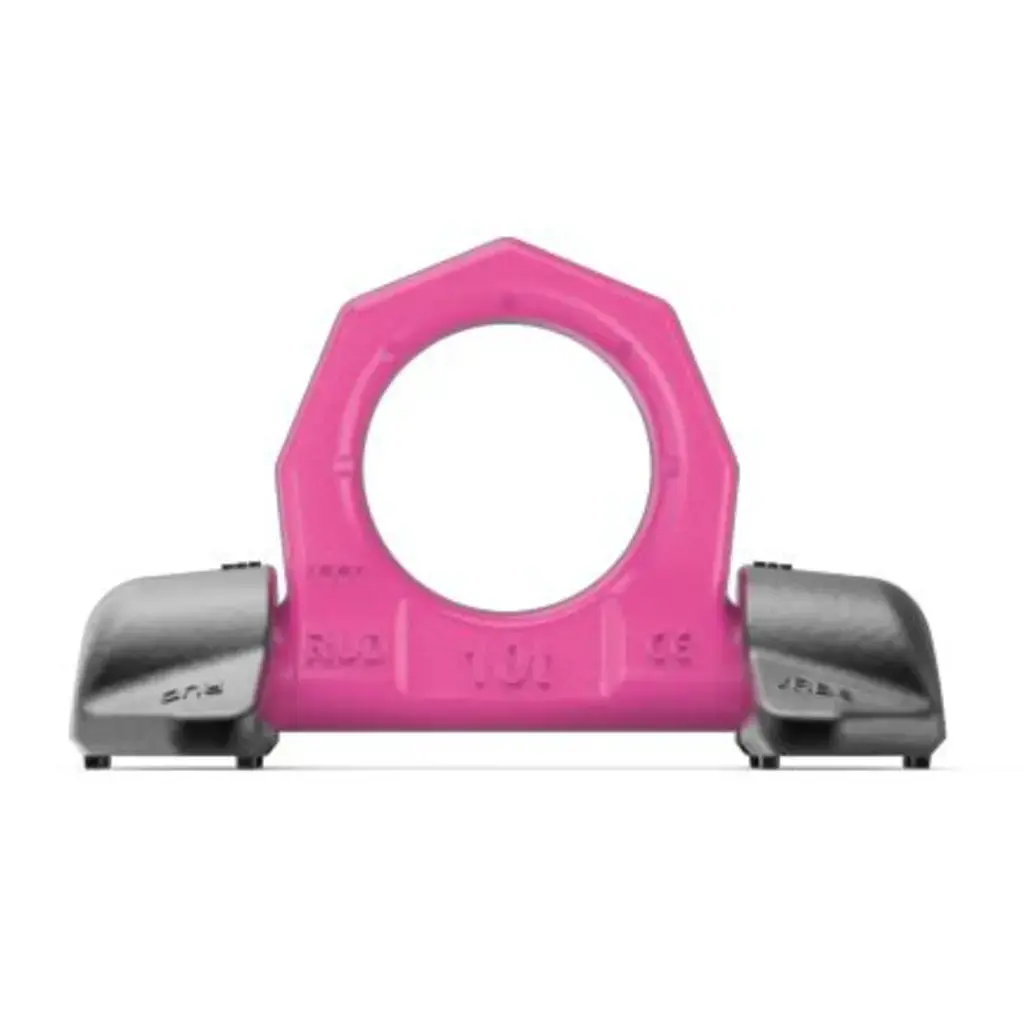

VRBS - Load ring for welding

Load ring for welding

Product Features

Large WLL range 4 t – 31.5 t
Clear indication of the minimum WLL for all loading directions
Wear markings for easy determination of wear
Distance knobs on the weld-on block for the necessary distance for root welding
The weld-on block is forged from a material that is easy to weld
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

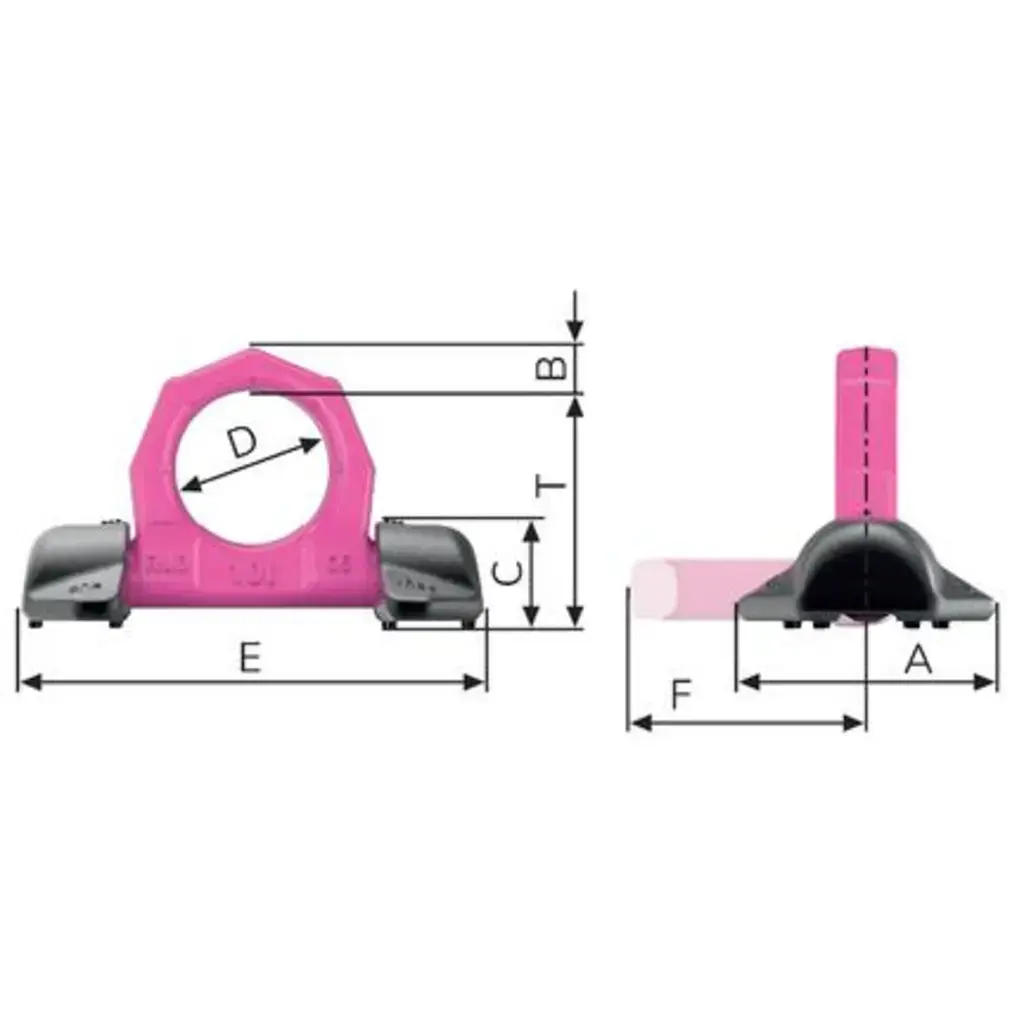

Model Number

WLL (tons)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

Pitch T (mm)

In Stock

Price

Model Number

7992488

WLL (tons): 4

A (mm): 62

B (mm): 14

C (mm): 28

D (mm): 48

E (mm): 135

F (mm): 71

Pitch T (mm): 65

In Stock

Price

Model Number

7992489

WLL (tons): 6.7

A (mm): 88

B (mm): 20

C (mm): 39

D (mm): 60

E (mm): 170

F (mm): 92

Pitch T (mm): 84

In Stock

Price

Model Number

7992490

WLL (tons): 10

A (mm): 100

B (mm): 22

C (mm): 46

D (mm): 65

E (mm): 195

F (mm): 100

Pitch T (mm): 95

In Stock

Price

Model Number

7992491

WLL (tons): 16

A (mm): 130

B (mm): 30

C (mm): 57

D (mm): 90

E (mm): 263

F (mm): 134

Pitch T (mm): 127

In Stock

Price

Model Number

60267

WLL (tons): 31.5

A (mm): 160

B (mm): 42

C (mm): 78

D (mm): 130

E (mm): 373

F (mm): 195

Pitch T (mm): 178

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
