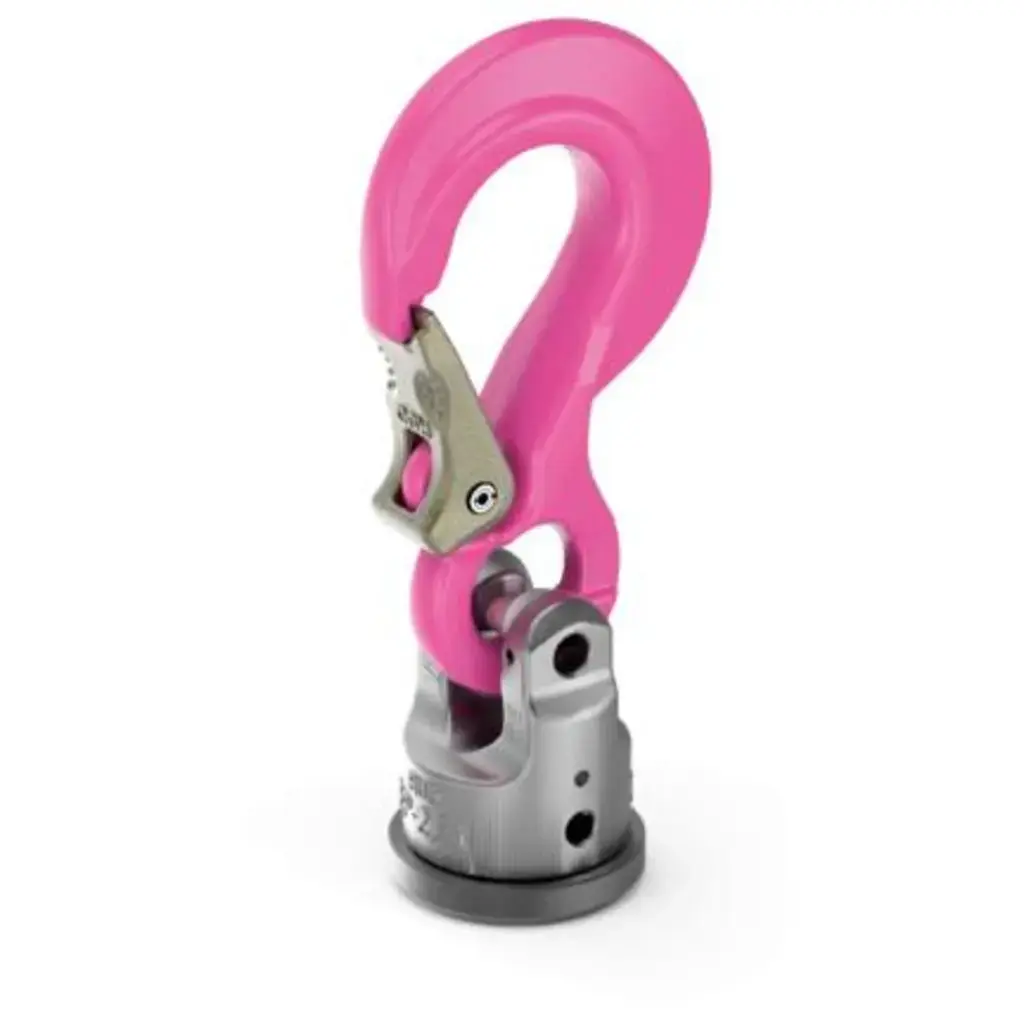

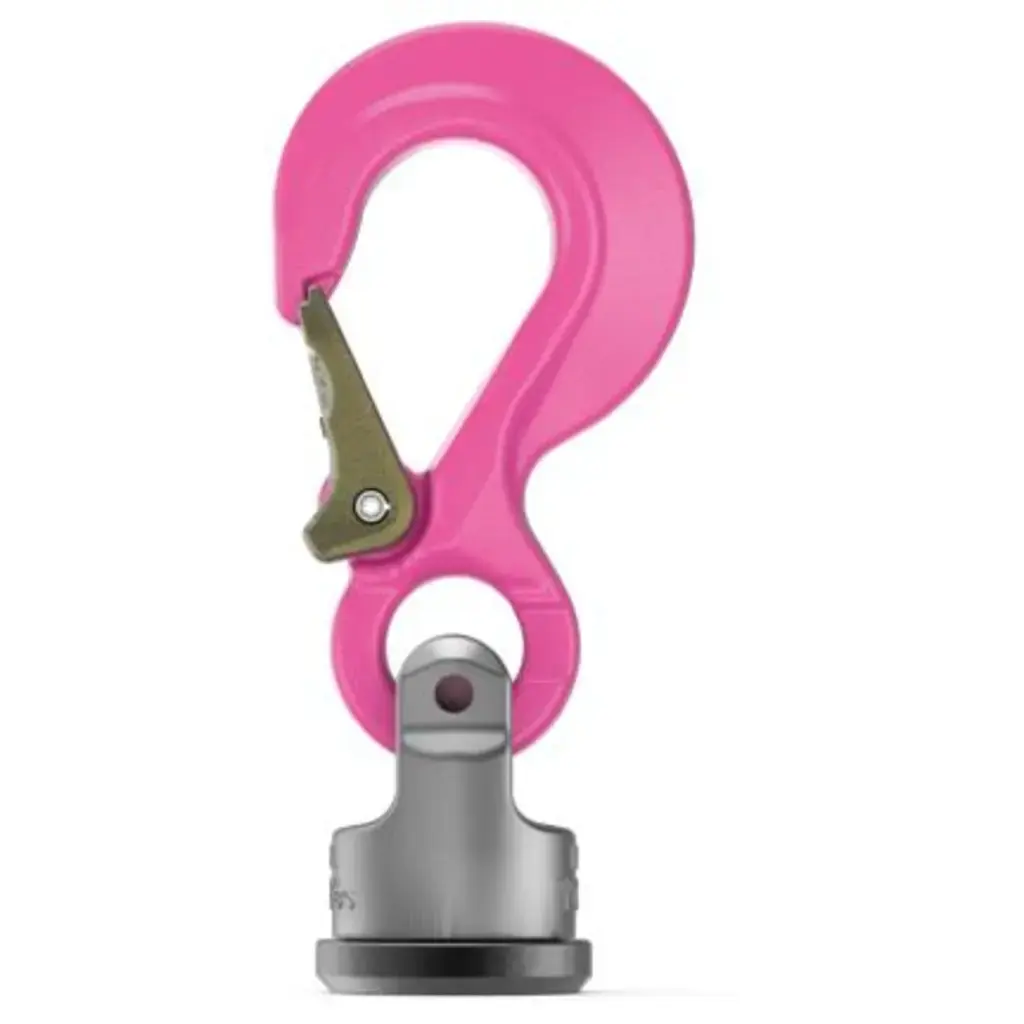

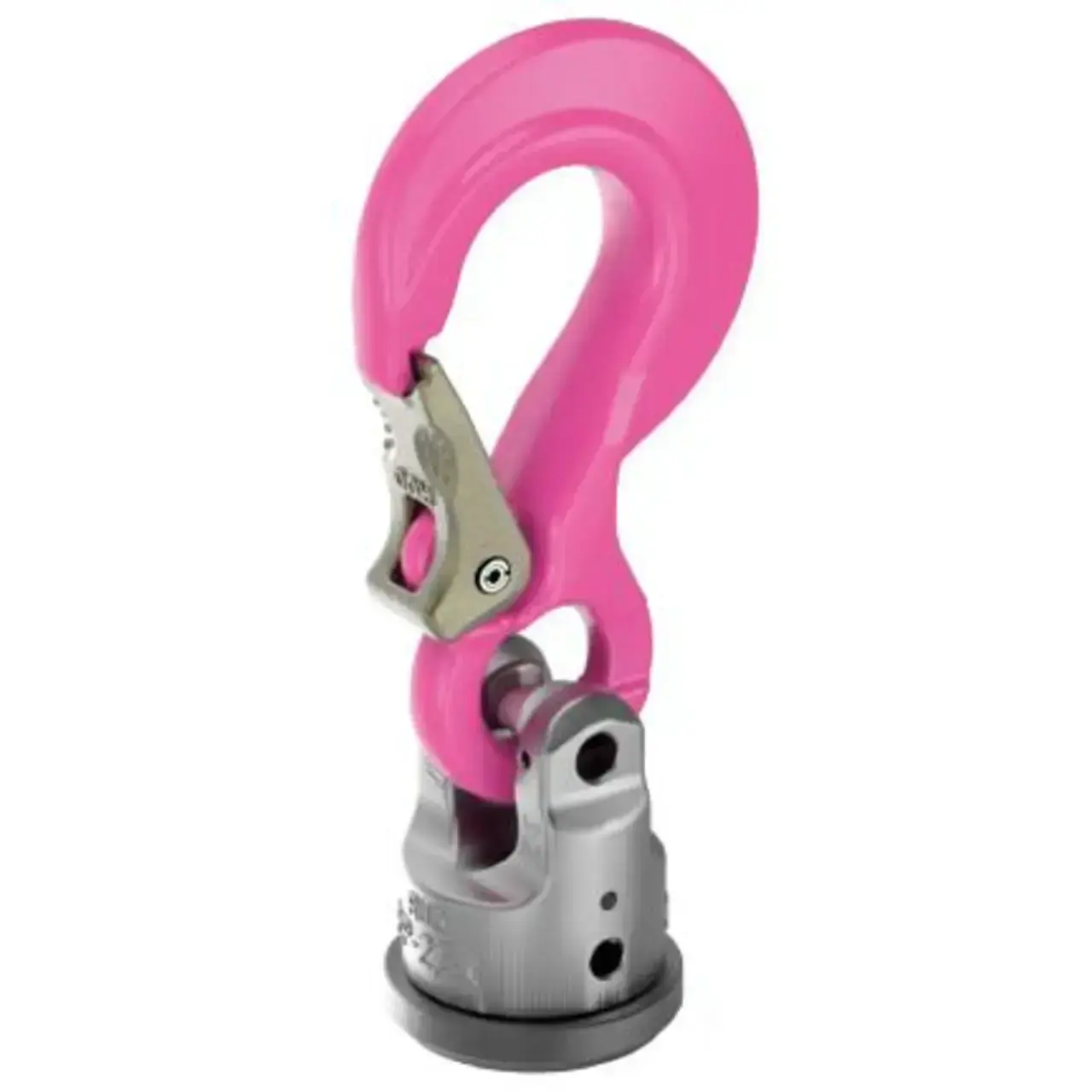

WPP-S PowerPoint® universal connection

universal connection

Product Features

Large WLL range 0.63 t – 8 t
Weldable universal connection with hook for ring suspensions, round slings, wire ropes, hook suspensions
Lowest kinking possibility due to cardan joint

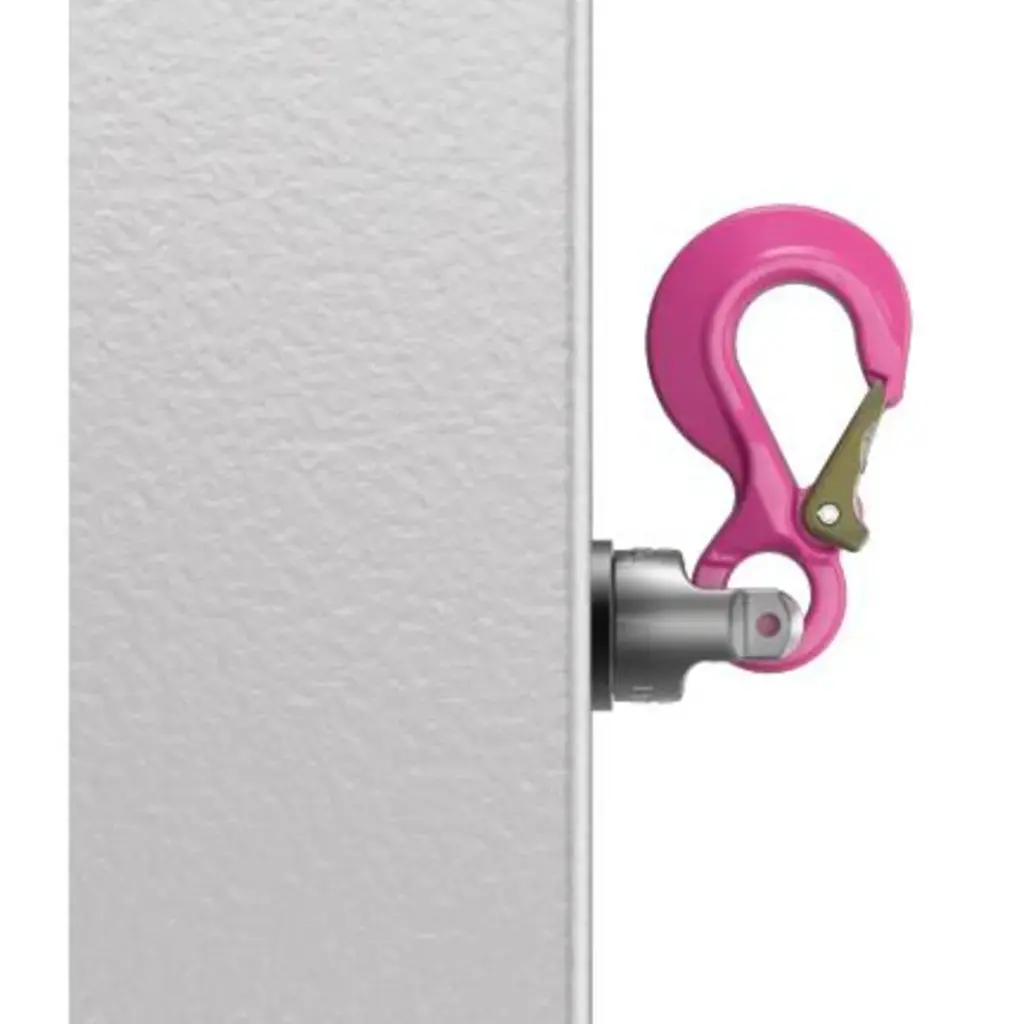

Can be rotated parallel to the weld-on surface under rated WLL
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

Model Number

WLL (lbs.)

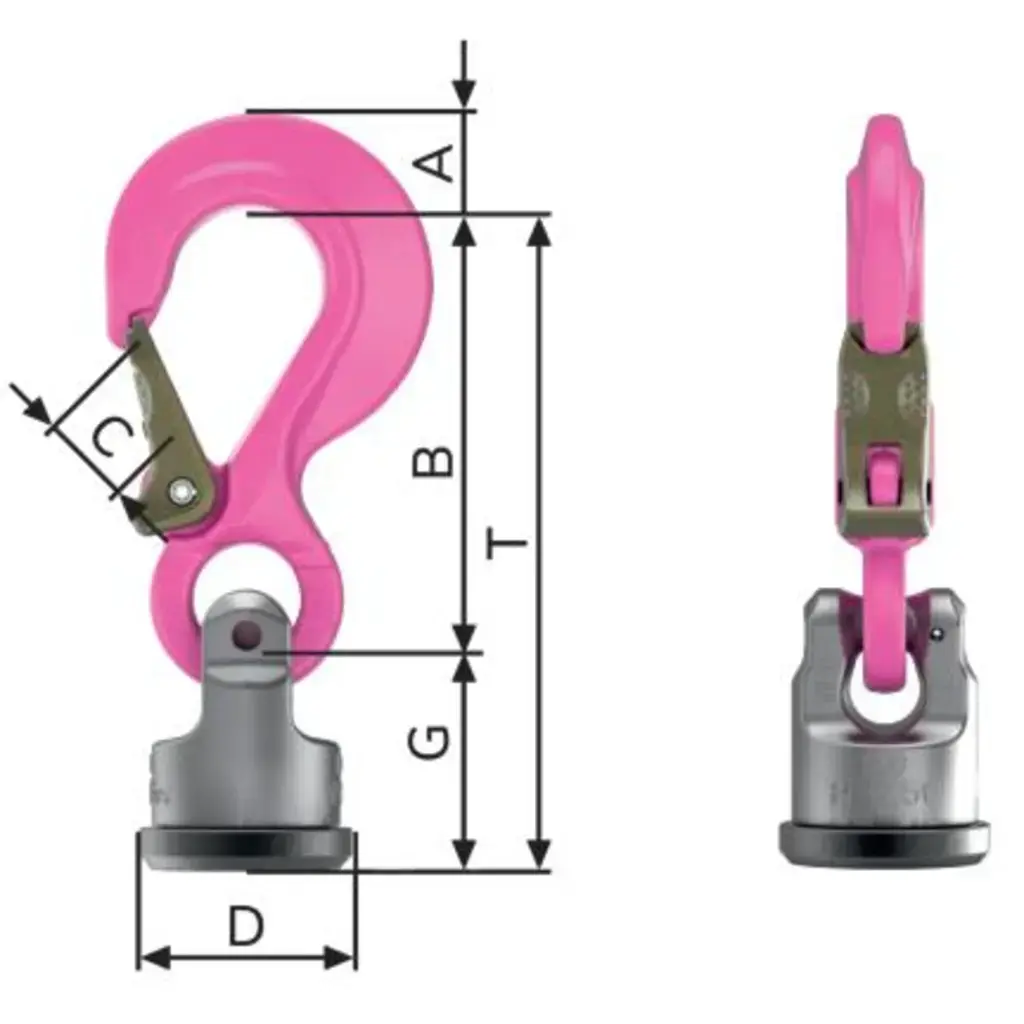

A (mm)

B (mm)

C (mm)

D (mm)

G (mm)

Pitch T (mm)

In Stock

Price

Model Number

7990721

WLL (lbs.): 1390

A (mm): 13

B (mm): 75

C (mm): 18

D (mm): 40

G (mm): 40

Pitch T (mm): 115

In Stock

Price

$170.00

Model Number

7989944

WLL (lbs.): 3300

A (mm): 20

B (mm): 97

C (mm): 25

D (mm): 46

G (mm): 50

Pitch T (mm): 147

In Stock

Price

Model Number

7989945

WLL (lbs.): 5500

A (mm): 28

B (mm): 126

C (mm): 30

D (mm): 61

G (mm): 61

Pitch T (mm): 187

In Stock

Price

Model Number

7989946

WLL (lbs.): 8820

A (mm): 36

B (mm): 150

C (mm): 35

D (mm): 78

G (mm): 77

Pitch T (mm): 227

In Stock

Price

$363.00

Model Number

7989947

WLL (lbs.): 11000

A (mm): 37

B (mm): 174

C (mm): 40

D (mm): 95

G (mm): 93

Pitch T (mm): 267

In Stock

Price

Model Number

7989948

WLL (lbs.): 17630

A (mm): 49

B (mm): 208

C (mm): 48

D (mm): 100

G (mm): 102

Pitch T (mm): 310

In Stock

Price

$758.00

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
