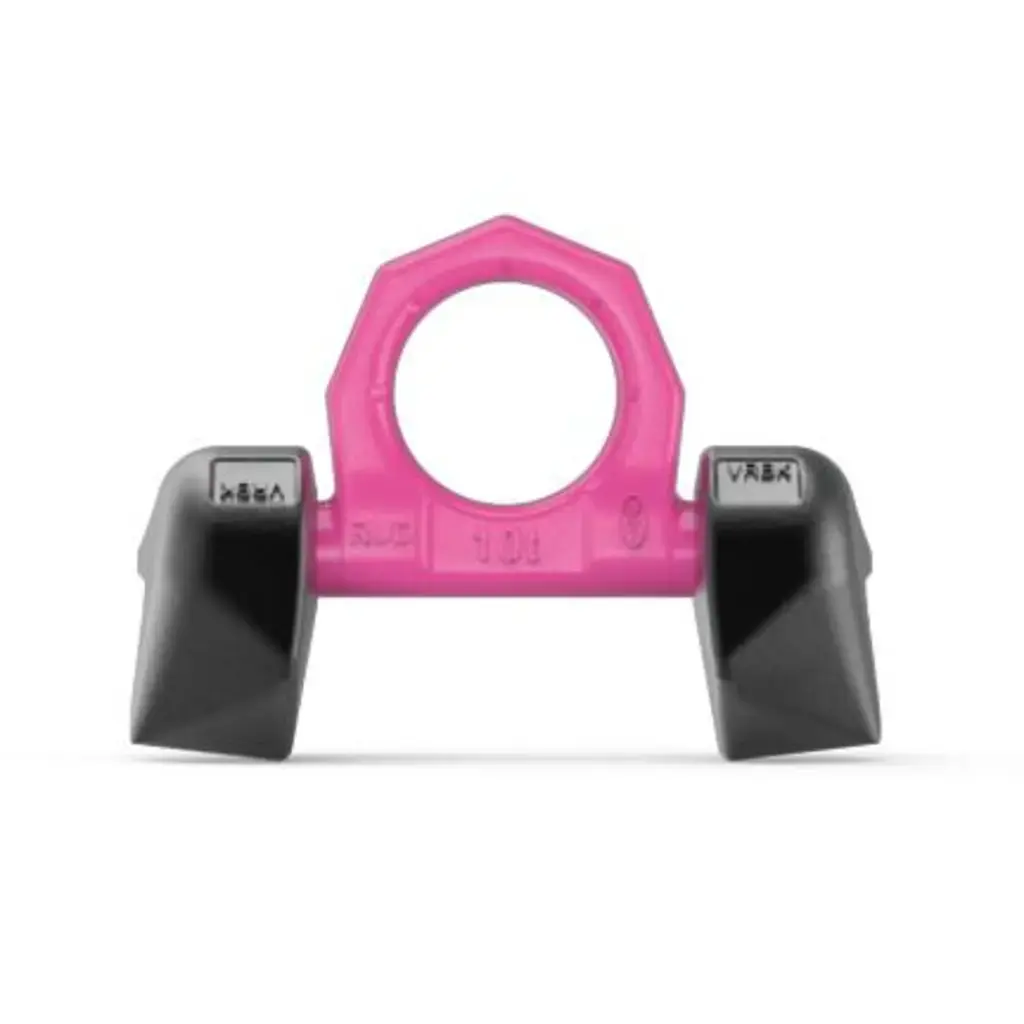

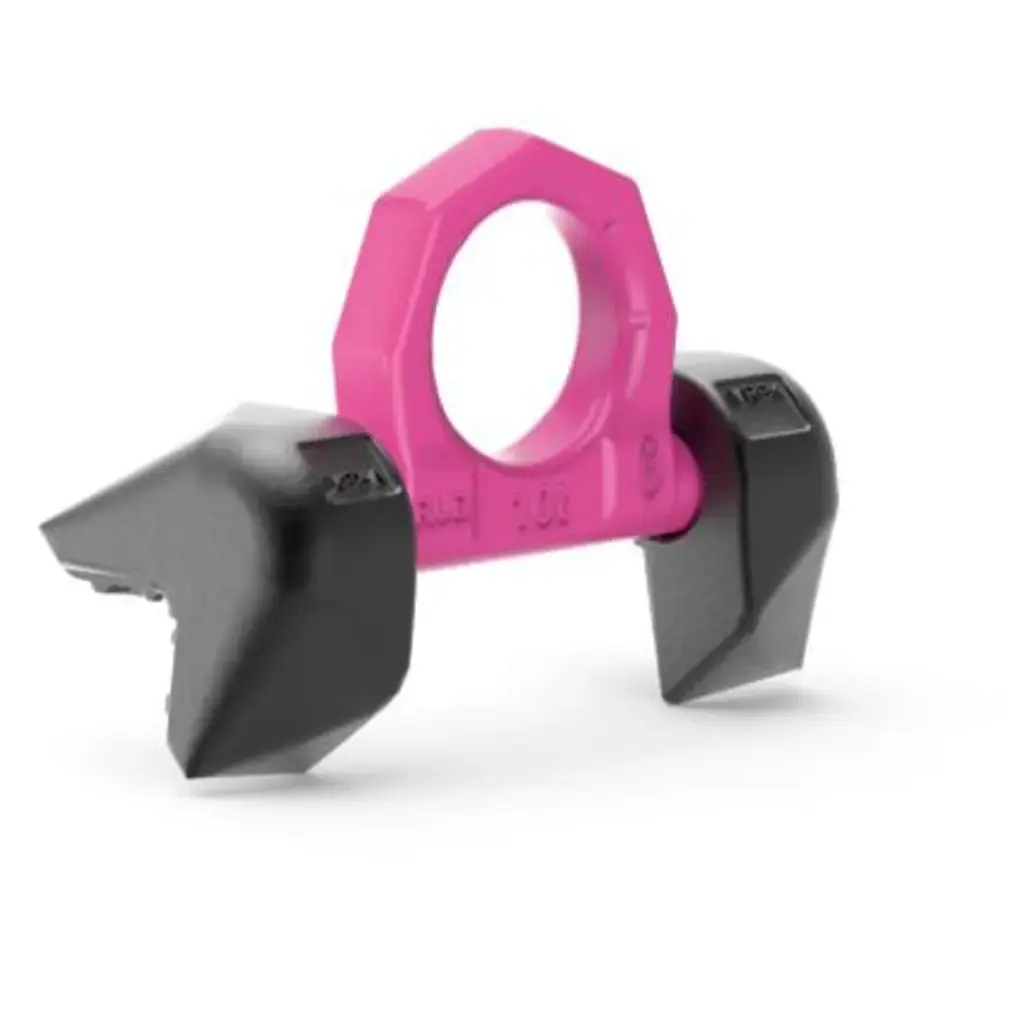

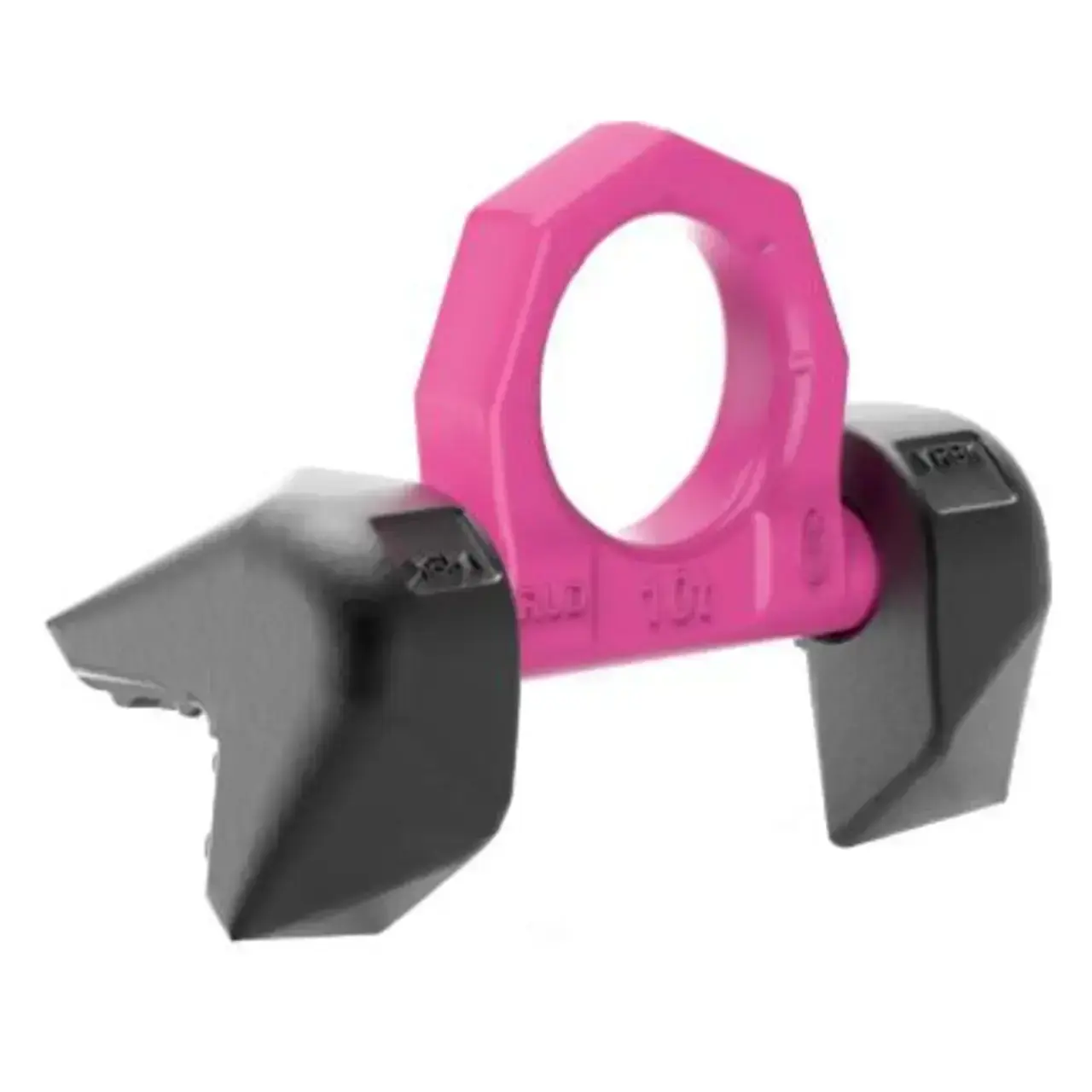

VRBK-FIX / VRBK - Load ring for welding for 90°-corners

Load ring for welding for 90°-corners

Product Features

Large WLL range 4 t – 50 t
Split force introduction thanks to multiple point fixing
Suspension ring pivots 270°
WLL possible up to 90° in load ring plane
Thanks to the weld arrangement (circular fillet weld), no contact/crevice corrosion can occur
Wear markings for easy determination of wear
The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction
Find the right lifting point for your load quickly and easily. Launch the RUD Configurator.

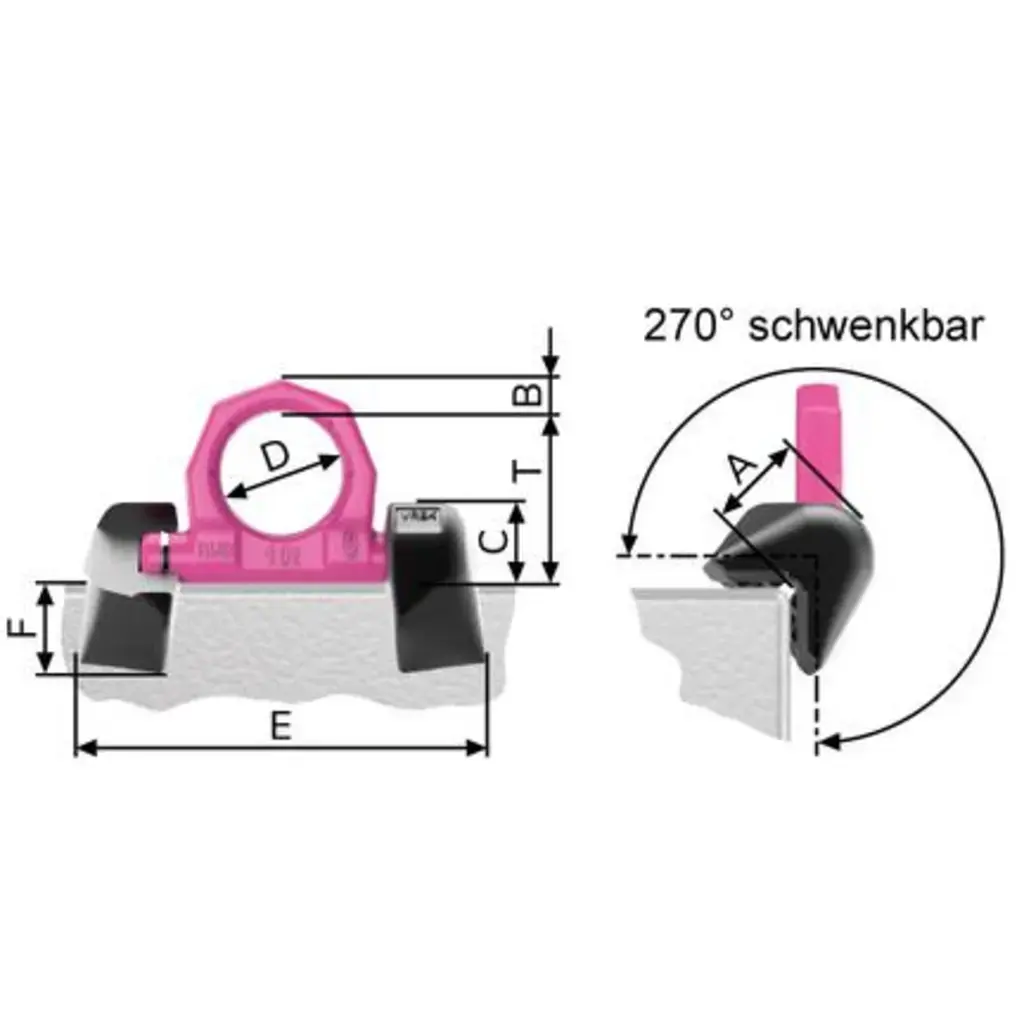

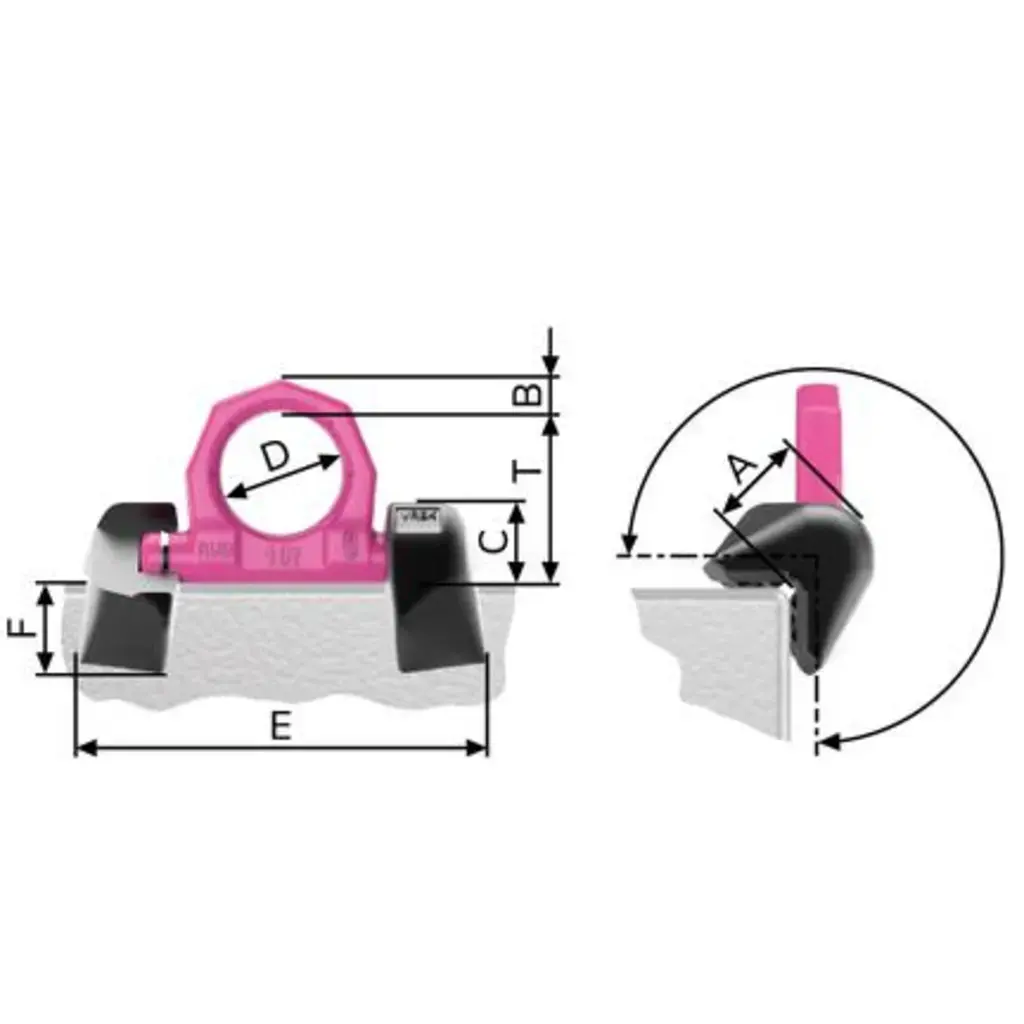

Model Number

WLL (tons)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

Pitch T (mm)

In Stock

Price

Model Number

7902149

WLL (tons): 4

A (mm): 32

B (mm): 14

C (mm): 28

D (mm): 48

E (mm): 141

F (mm): 30

G (mm): 0

Pitch T (mm): 65

In Stock

Price

Model Number

7902150

WLL (tons): 6.7

A (mm): 40

B (mm): 20

C (mm): 35

D (mm): 60

E (mm): 181

F (mm): 34

G (mm): 0

Pitch T (mm): 84

In Stock

Price

Model Number

7902256

WLL (tons): 10

A (mm): 52

B (mm): 22

C (mm): 46

D (mm): 65

E (mm): 212

F (mm): 46

G (mm): 0

Pitch T (mm): 94

In Stock

Price

Model Number

7904653

WLL (tons): 50

A (mm): 134

B (mm): 70

C (mm): 118

D (mm): 230

E (mm): 626

F (mm): 96

G (mm): 54

Pitch T (mm): 303

In Stock

Price

Due to unpredictable fluctuations in the supply chain, pricing is subject to change without notice. Call 800-628-4263 for updated information.
